Insulating Rubber Sheet (Black / Red / Green Striped)
Striped insulating rubber sheet in 1 m × 10 m rolls, OEM custom branding available.
Final quotation depends on specification, quantity and destination — request a quote for exact pricing.
- Rated Voltage
- 5kV-35kV
- Rated Current
- N/A
- Application
- Indoor
- Type
- Insulating rubber mat
- Number of Sockets
- N/A
- Place of Origin
- Hebei, China
Product Attributes
| Rated Voltage | 5kV-35kV |
| Rated Current | N/A |
| Application | Indoor |
| Type | Insulating rubber mat |
| Number of Sockets | N/A |
| Place of Origin | Hebei, China |
| Model Number | IRM-1003 |
| Product Name | High Voltage Insulating Rubber Mat |
| Material | SBR rubber |

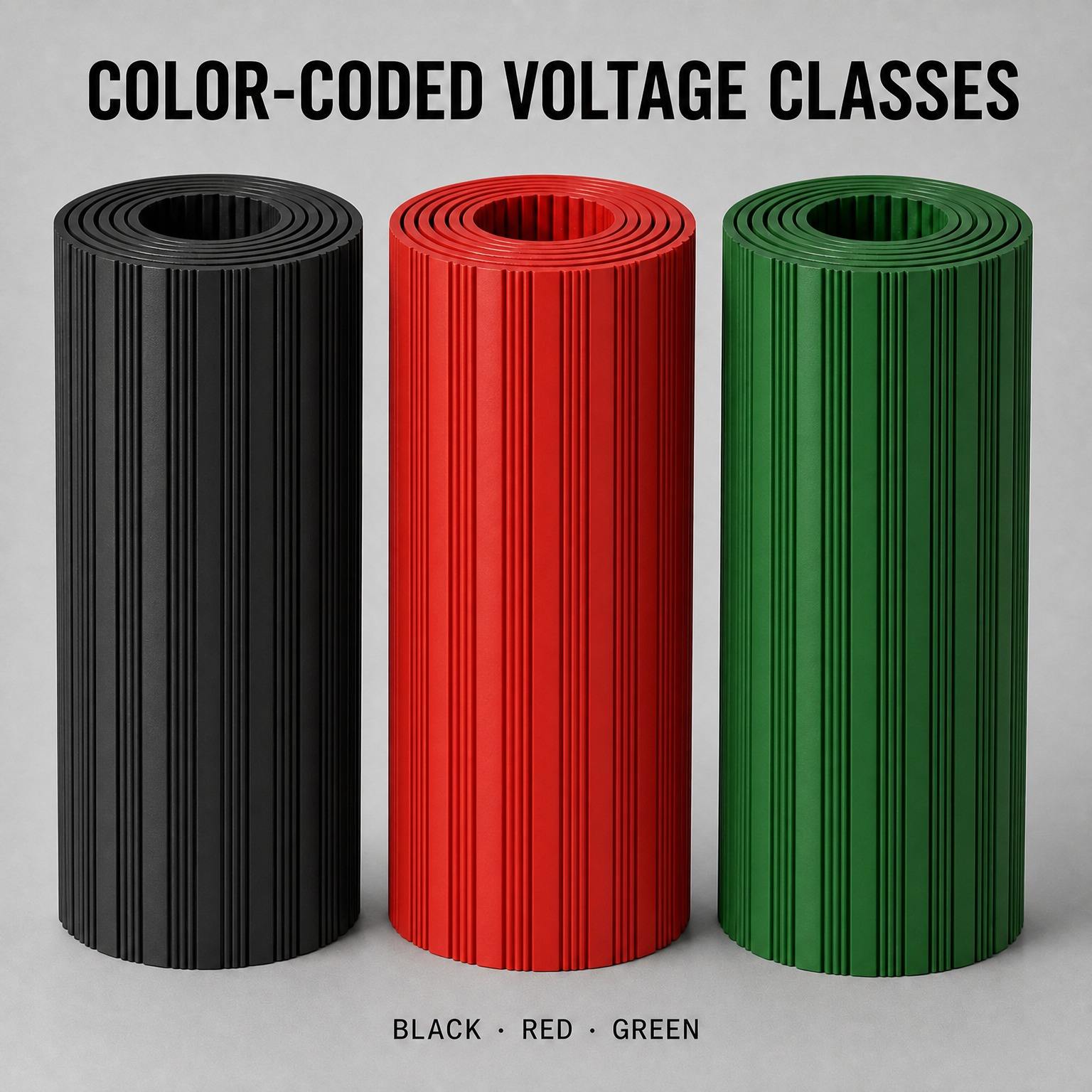

| Color | Black, red, green |
| Standard | IEC 61111 / ASTM D178 |

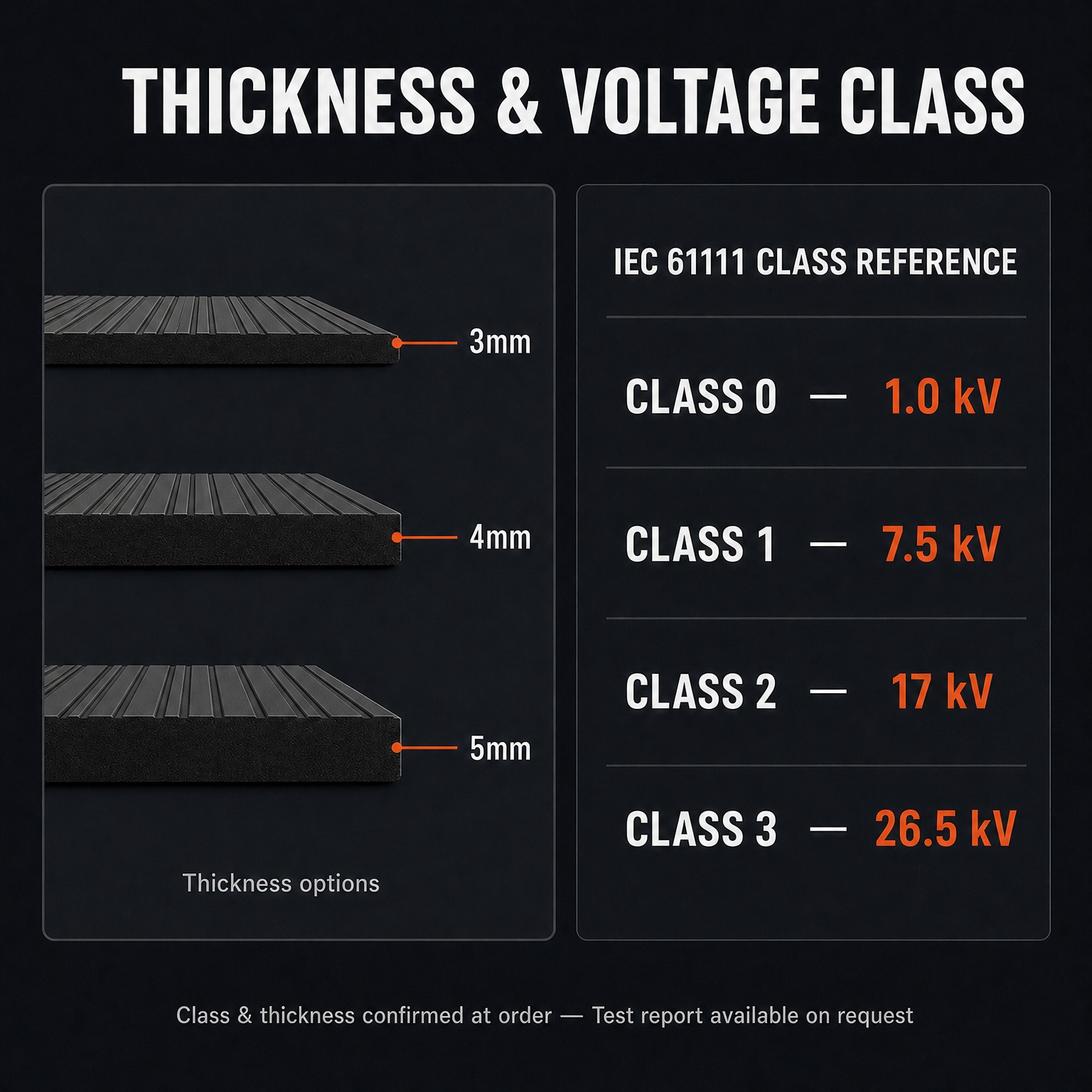

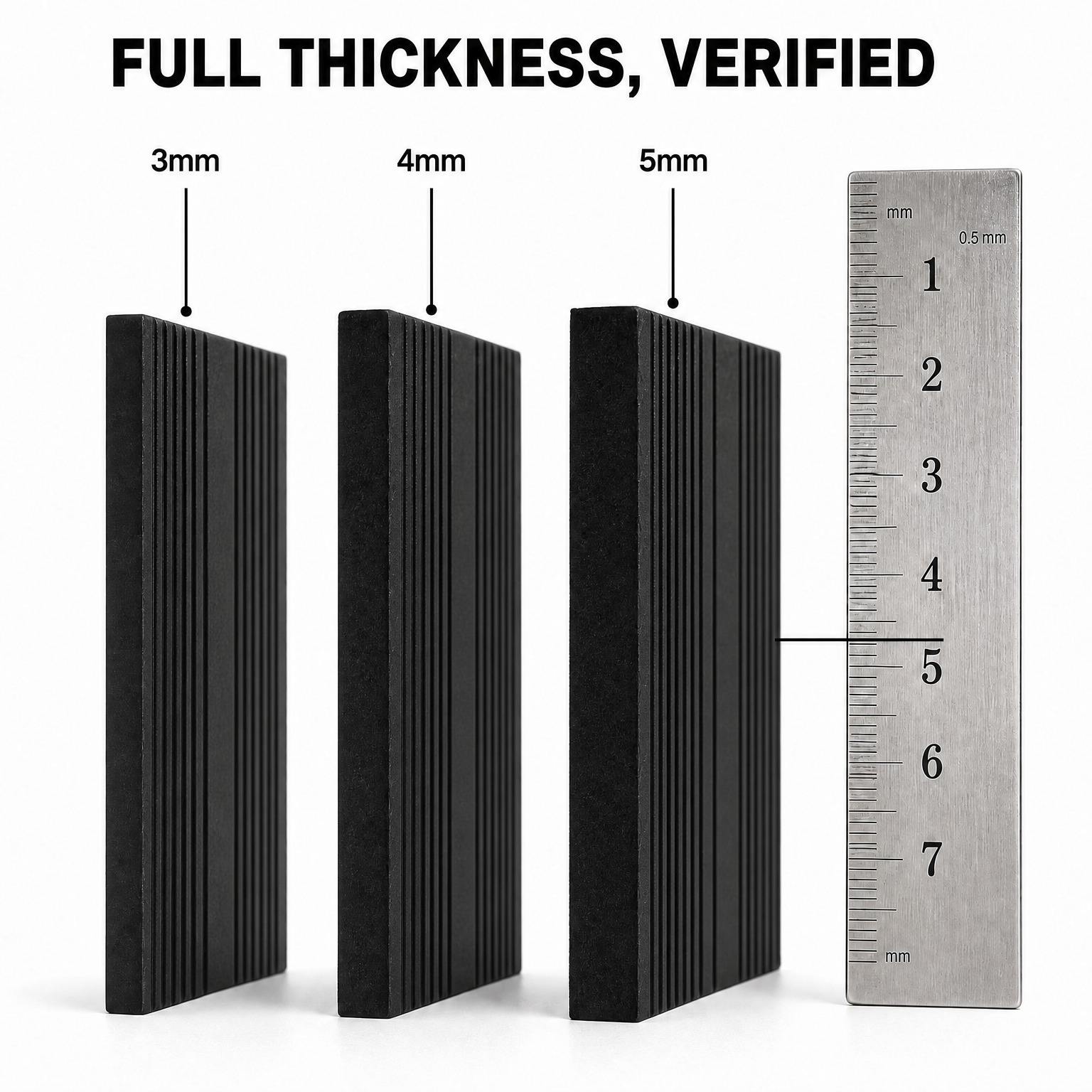

| Thickness | 3mm, 4mm, 5mm (custom 2-12mm) |

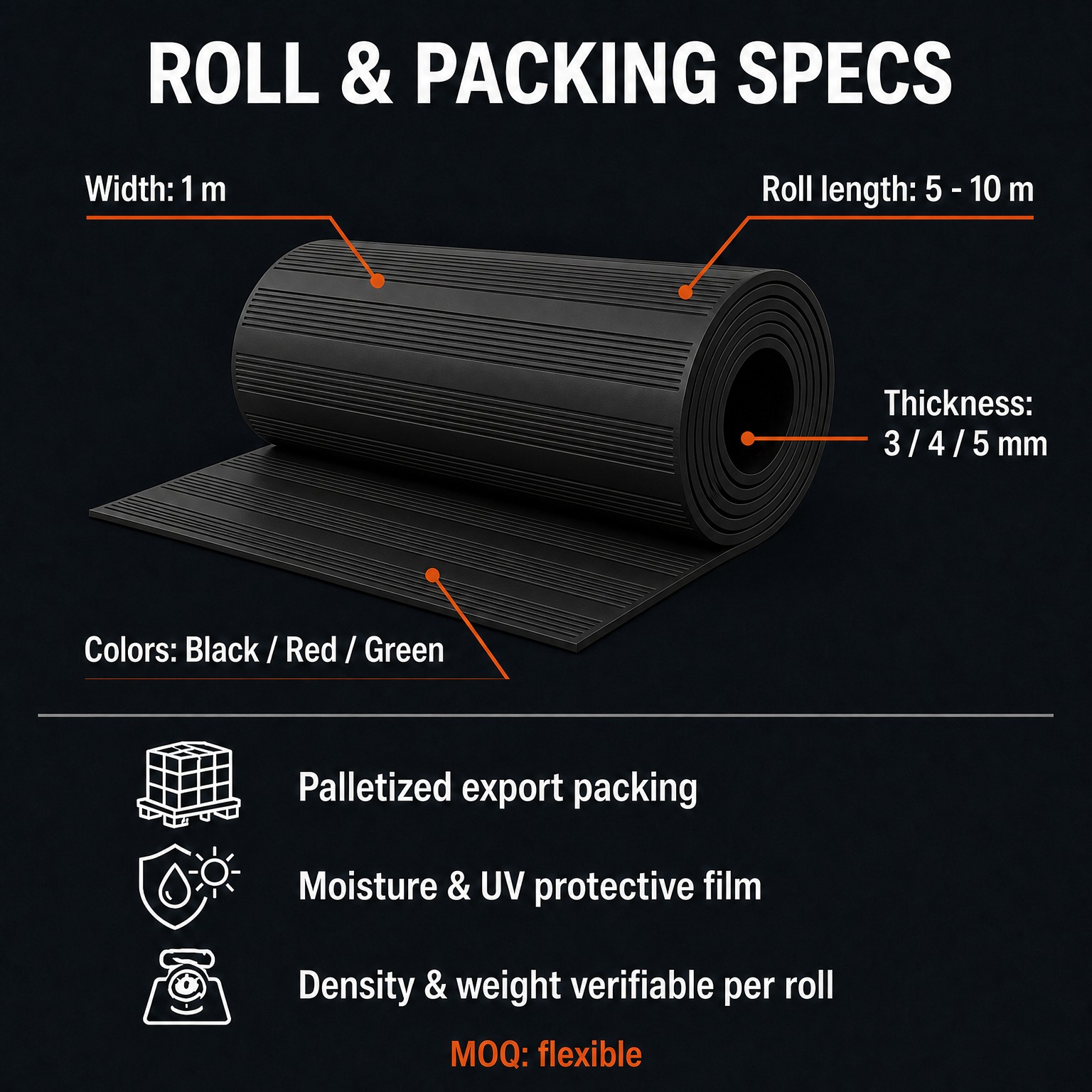

| Width | 1m |
| Roll Length | 5-10m |

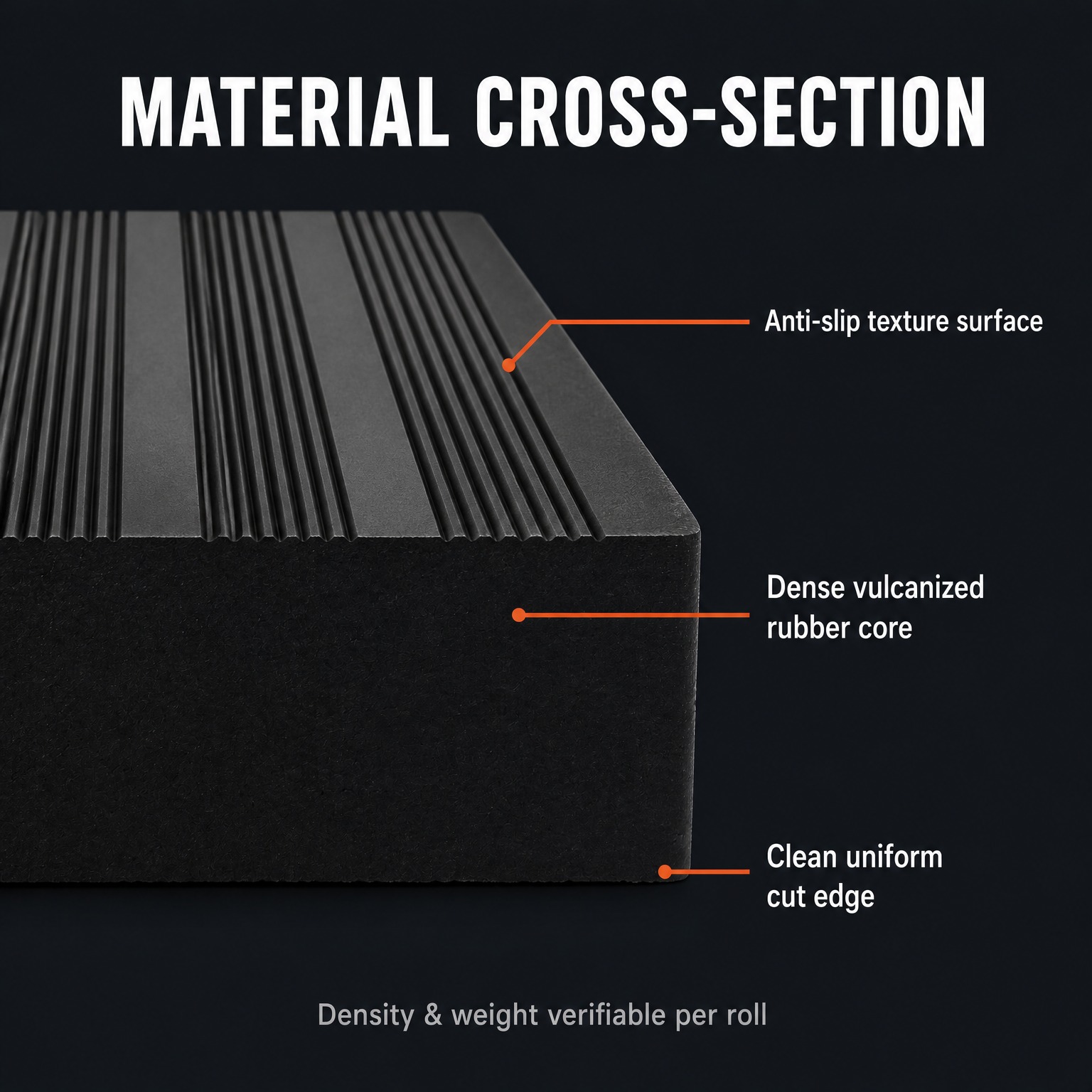

| Surface | Anti-slip fine-rib striped |
| Customization | OEM/ODM supported |
| Certification | Yes |
Description
Still deciding? Read the engineering guide
Background on how this product's class, dimensions and test requirements are determined.
Insulating Mat Thickness and Voltage: The Complete Reference Table
One reference for every figure behind insulating mat selection: IEC 61111 Class 0-4 voltages and proof test levels, the thickness window for each class, the ASTM D178 ladder, colour codes and retest voltages.
Read the guide Insulation & Standards · 9 min readHow to Choose Insulating Rubber Mat Thickness: A Voltage-Based Selection Guide
Thickness does not set a mat's voltage rating — the class does. A guide to the IEC 61111 Class 0–4 table, the selection rule, and how to write a specification that survives an audit.
Read the guideFrequently asked questions
Answers below are taken directly from this product's recorded specification, packaging and delivery data.
- Which standards and certifications does this product comply with?
- Insulating Rubber Sheet (Black / Red / Green Striped) is supplied under IEC 61111 and REACH.
- What is the minimum order quantity (MOQ)?
- The minimum order quantity for this product is 10 m².
- What is the lead time?
- Lead time: 7-30 days, depending on order quantity.
- Which port is the product shipped from?
- Shipments are loaded at Tianjin.
- What is the monthly supply ability?
- Supply ability: 90,000 m²/month.
- What are the main technical specifications?
- Size: 1 m × 10 m rolls; Standard: IEC 61111; Colors: Black / red / green striped.
- How is the product packed for shipment?
- Selling unit: Single item; Single package size: 100.0X100.0X20.0 cm; Single gross weight: 20.0 kg
- Which payment terms are accepted?
- Accepted payment terms: FOB.
- Can this product be customized?
- Customization: OEM custom printing
