ESD Anti-Static + HV Dual-Protection Mat

Dual-protection floor mat combining ESD anti-static and high-voltage insulation for EV battery lines and switchboards.

MOQ
10 m²
Supply Type
OEM / ODM / Buyer Label

Final quotation depends on specification, quantity and destination — request a quote for exact pricing.

Rated Voltage
30kV
Material
Rubber
Special Features
Durable, eco-friendly, flexible, waterproof, safe
Model Number
YGHK
Place of Origin
Hebei, China
Brand Name
YJH
Watch

ESD Anti-Static + HV Dual-Protection Mat in the workshop

Product video · 00:40 — press play to load it.

Product Attributes

Rated Voltage30kV
MaterialRubber
Special FeaturesDurable, eco-friendly, flexible, waterproof, safe
Model NumberYGHK
Place of OriginHebei, China
Brand NameYJH
ApplicationIndustrial automation
Warranty24 months
QualityHigh quality
ServiceAfter-sales service
PackagingCarton packaging
TypeIndustrial spare parts
FunctionAnti-slip
ConditionNew
Delivery Time7-30 days
PaymentTT / Trade Assurance / Paypal / Alipay

Description

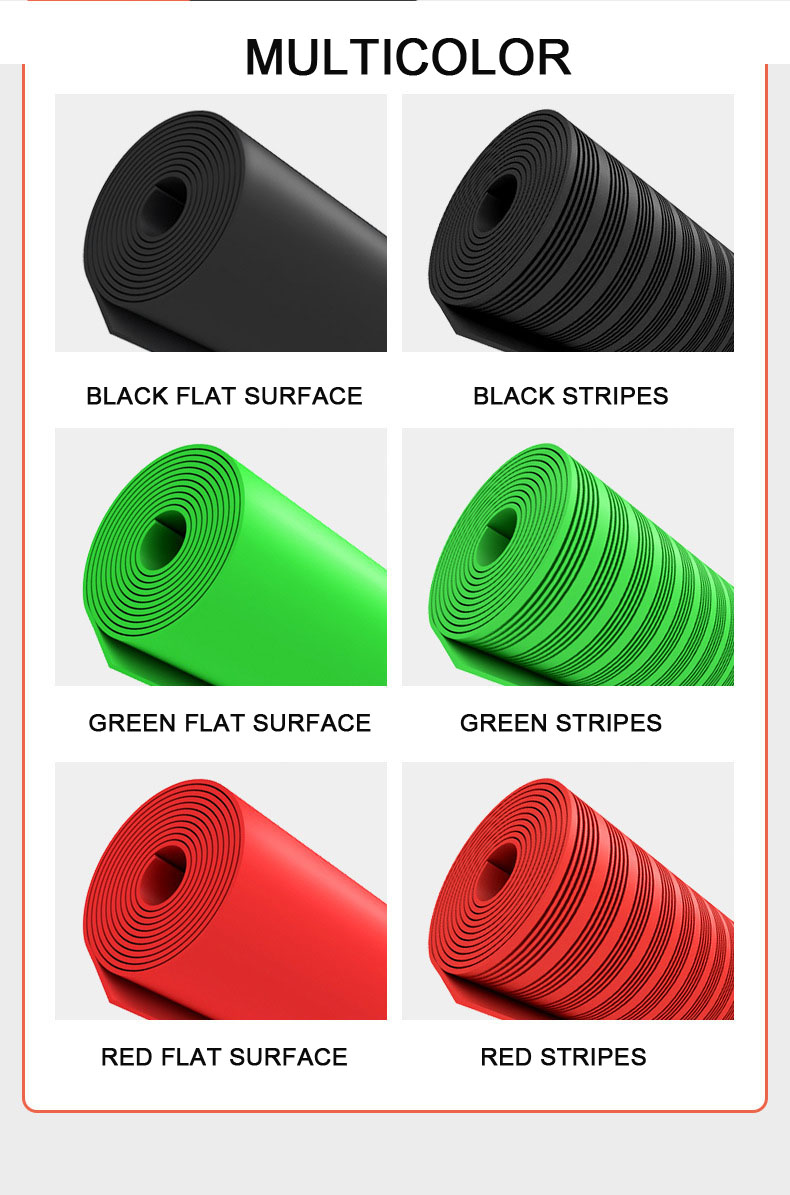

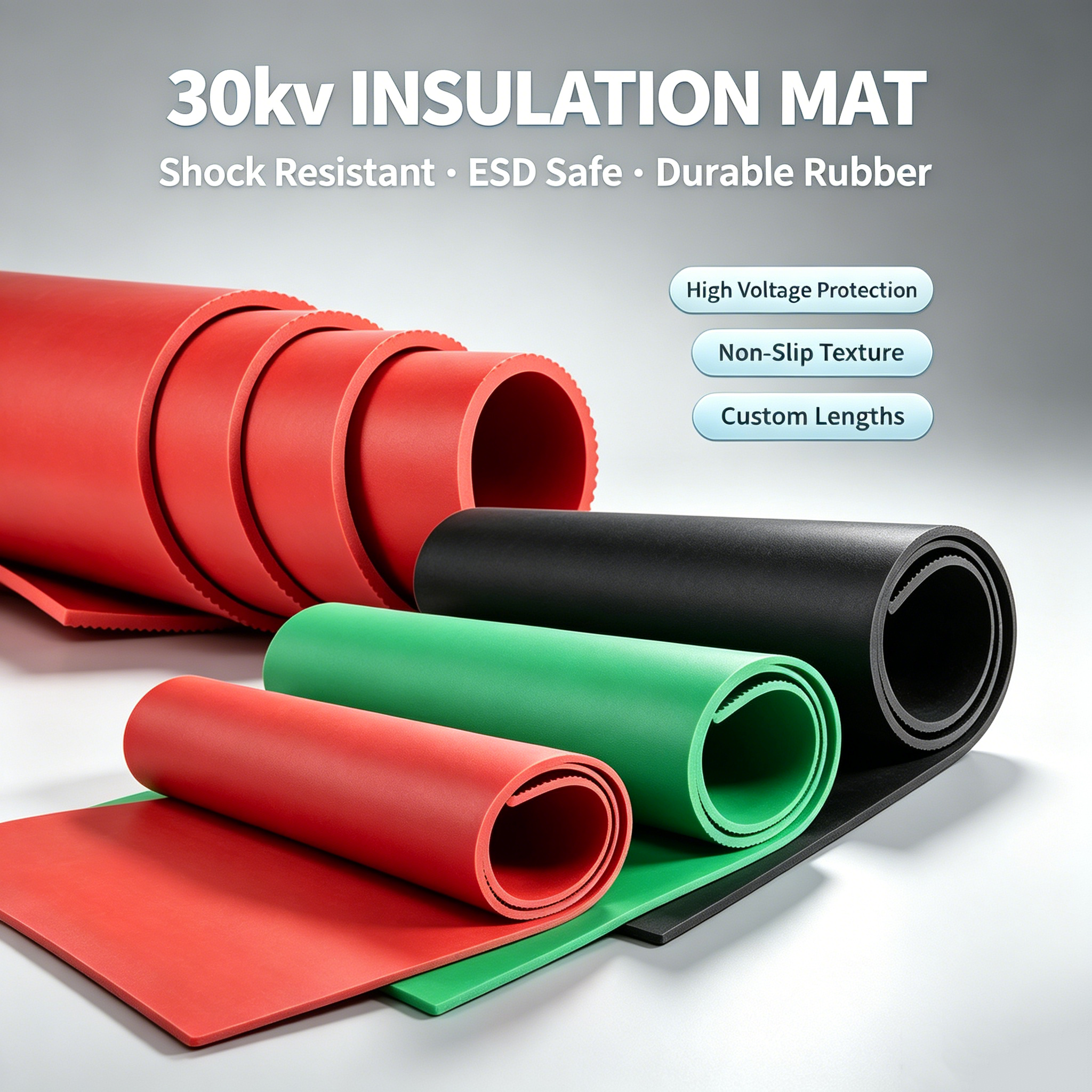

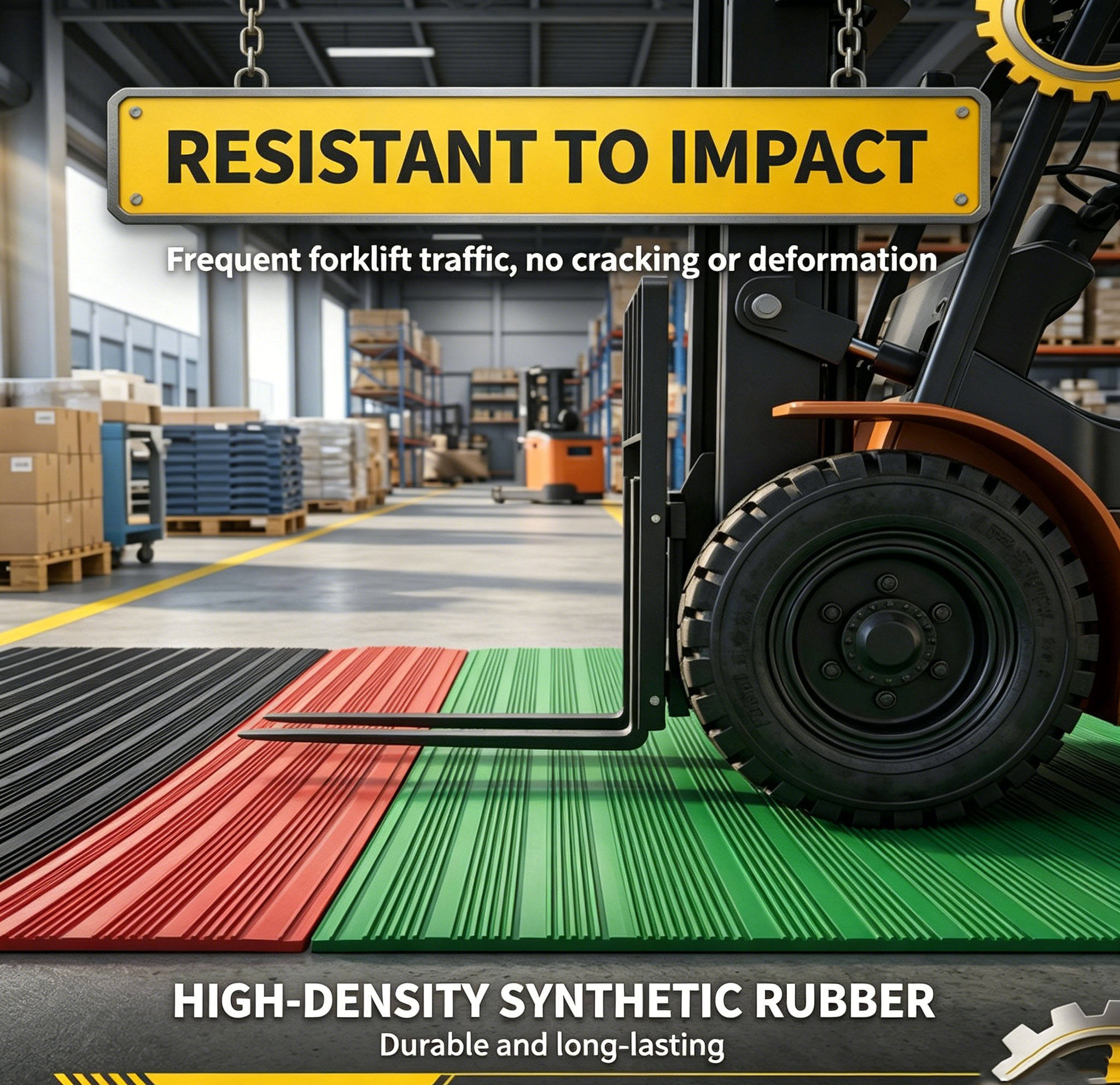

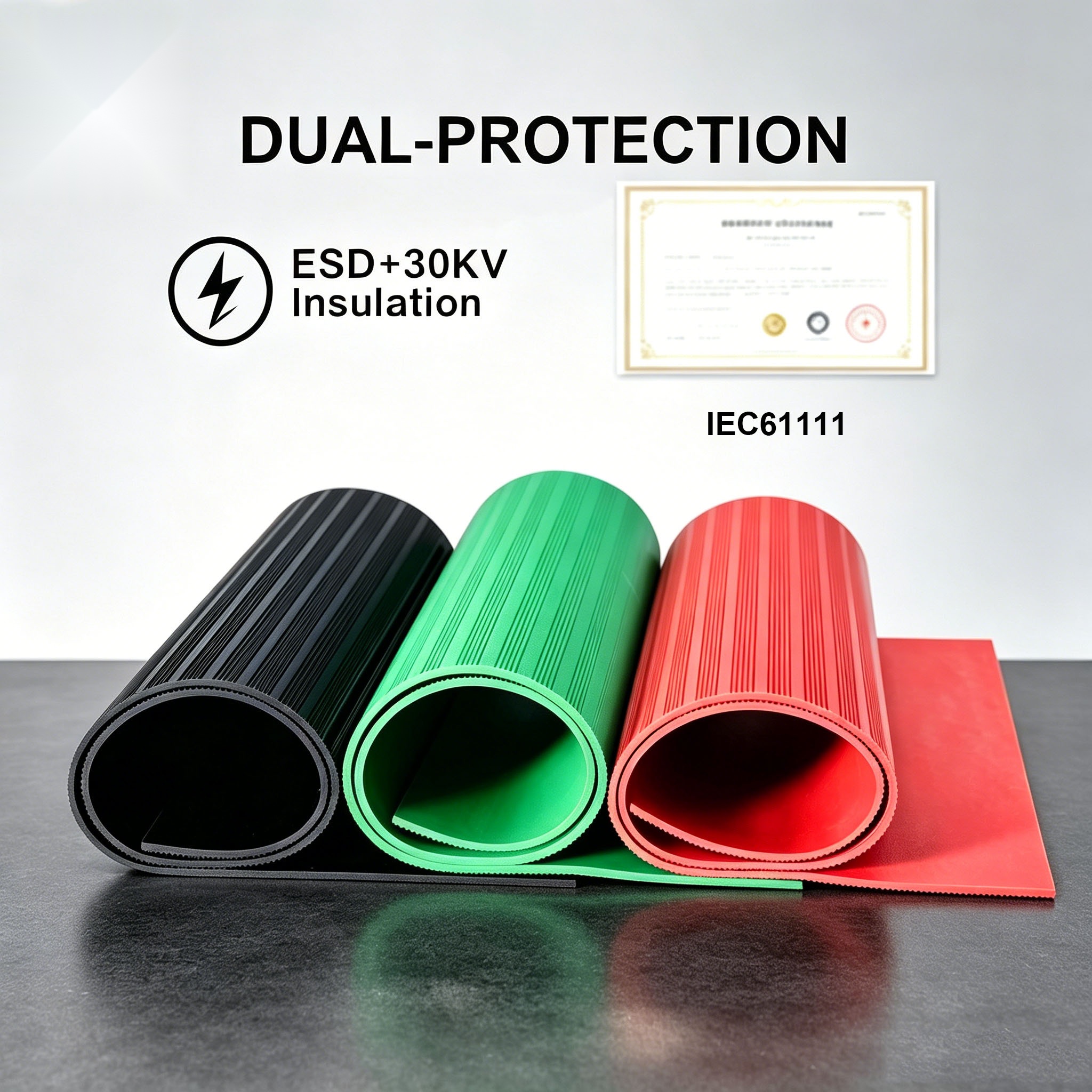

ESD Anti-Static + HV Dual-Protection Mat — anti-static industrial floor mat / switchboard mat for electric vehicle (EV) battery assembly production lines. Product Highlights: - ESD and high-voltage dual protection: electrostatic discharge and high-voltage protection for EV battery production. - 30kV insulation: ensures reliability and safety in high-voltage environments (rated 30kV working / 50kV test — provides a large safety margin for 800V EV battery test systems). - Anti-static design: prevents static charge buildup for precise assembly operations. - Industrial-grade quality: durable and reliable for demanding long-term applications. - Multiple color options: customization available for different workspace needs. - Integrated heat vulcanization: no functional conflicts. - Chemical resistance (battery workshop specific): synthetic nitrile (NBR) compound, oil and chemical resistant. - Strong elasticity and flexibility; tough, wear-resistant and long-lasting; custom service available. Technical details: - 75 Shore A hardness balances comfort for all-day standing workers with the rigidity needed for heavy machinery and AGV traffic. - UV-stabilized pigments maintain professional green/black contrast for at least 5 years indoors. - Compatible with ISO 6 class cleanrooms: high-density nitrile-based compound with extremely low outgassing and particle emission. - 100% heavy-metal-free, meeting the strictest global automotive environmental standards. - High heat resistance (note: sustained direct contact with welding sparks may damage the surface — a dedicated fire-proof version is recommended for welding areas). Customization: standard roll length 10m; continuous rolls up to 30m available (80,000 m² workshop); logo/safety warnings can be laser-etched or printed on the mat edge for bulk orders. FAQs: - Suitable for 800V EV battery test systems? Yes — rated 30kV (working) and 50kV (test), providing huge safety redundancy for 800V systems. - Custom lengths of 20m or more? Yes — up to 30m continuous rolls to reduce in-workshop joints.
ESD Anti-Static + HV Dual-Protection Mat detail 1ESD Anti-Static + HV Dual-Protection Mat detail 2ESD Anti-Static + HV Dual-Protection Mat detail 3ESD Anti-Static + HV Dual-Protection Mat detail 4ESD Anti-Static + HV Dual-Protection Mat detail 5ESD Anti-Static + HV Dual-Protection Mat detail 6
Request a quote

Ask about ESD Anti-Static + HV Dual-Protection Mat

Send the quantity, the voltage class or size, and the standards your project calls for. Our export engineers reply within 24 hours with a quotation, lead time, and the test certificates available with the order.

  • Quotation and lead time within 24 hours, Mon–Sat
  • Test certificates supplied with the order
  • Factory direct — HEBEI YUJINHONG TECHNOLOGY CO., LTD.

Request a quote for this product

Goes straight to our export engineers with the model already noted — mat-esd

Reply within 24 hours, Mon–SatOr chat on WhatsApp →
Technical guides

Still deciding? Read the engineering guide

Background on how this product's class, dimensions and test requirements are determined.

Insulation & Standards · 6 min read

IEC 61111 Matting Classes 0–4: The Ladder, the Windows and the Yearly Test

Class sets the voltage band and the thickness window, but it is the yearly test that separates the classes commercially: Class 0 needs a visual check, Class 4 goes back on a 40 kV set.

Read the guide
Insulation & Standards · 7 min read

IEC 61111 vs ASTM D178: Which Insulating Mat Standard Applies to Your Project?

The two standards share one voltage ladder and disagree on thickness — 3 mm versus 6.4 mm at the same class. The class-by-class comparison, the Type and Category systems, and how to write a spec that survives inspection.

Read the guide
Insulation & Standards · 6 min read

EN 50321-1 Insulating Boots: The 2018 Revision Moved the Class Ladder

The 2018 revision moved insulating footwear from two classes to six, but the DC ladder still stops at Class 2. The class table, the antistatic boundary, and the lines that belong on the order.

Read the guide
Insulation & Standards · 6 min read

Mat Storage vs In-Service Temperature: Why the Two Ranges Differ

One manufacturer's IEC 61111 matting is published at −40 °C to +55 °C working and +10 °C to +21 °C in storage. Two ranges, two different jobs — and the storage one is the one nobody reads.

Read the guide
Insulation & Standards · 6 min read

Which Edition of IEC 61111 Applies to Your Matting Order — and Which Regional Adoption

A PO that says "IEC 61111" leaves two things open: which edition, and which regional adoption. IEC 61111:2026 has cancelled the 2009 edition, and CAN/ULC-61111-10 is a modified adoption, not a reprint.

Read the guide
Insulation & Standards · 8 min read

Insulating Mat Thickness and Voltage: The Complete Reference Table

One reference for every figure behind insulating mat selection: IEC 61111 Class 0-4 voltages and proof test levels, the thickness window for each class, the ASTM D178 ladder, colour codes and retest voltages.

Read the guide
Insulation & Standards · 9 min read

How to Choose Insulating Rubber Mat Thickness: A Voltage-Based Selection Guide

Thickness does not set a mat's voltage rating — the class does. A guide to the IEC 61111 Class 0–4 table, the selection rule, and how to write a specification that survives an audit.

Read the guide
FAQ

Frequently asked questions

Answers below are taken directly from this product's recorded specification, packaging and delivery data.

Which standards and certifications does this product comply with?
ESD Anti-Static + HV Dual-Protection Mat is supplied under IEC 61111 and RoHS.
What is the minimum order quantity (MOQ)?
The minimum order quantity for this product is 10 m².
What is the lead time?
Lead time: 7-30 days, depending on order quantity.
Which port is the product shipped from?
Shipments are loaded at Tianjin.
What is the monthly supply ability?
Supply ability: 90,000 m²/month.
How is the product packed for shipment?
Selling unit: Single item; Single package size: 103.0X103.0X3.3 cm; Single gross weight: 7.0 kg
Which payment terms are accepted?
Accepted payment terms: FOB.
Can this product be customized?
Customization: Custom sizes
