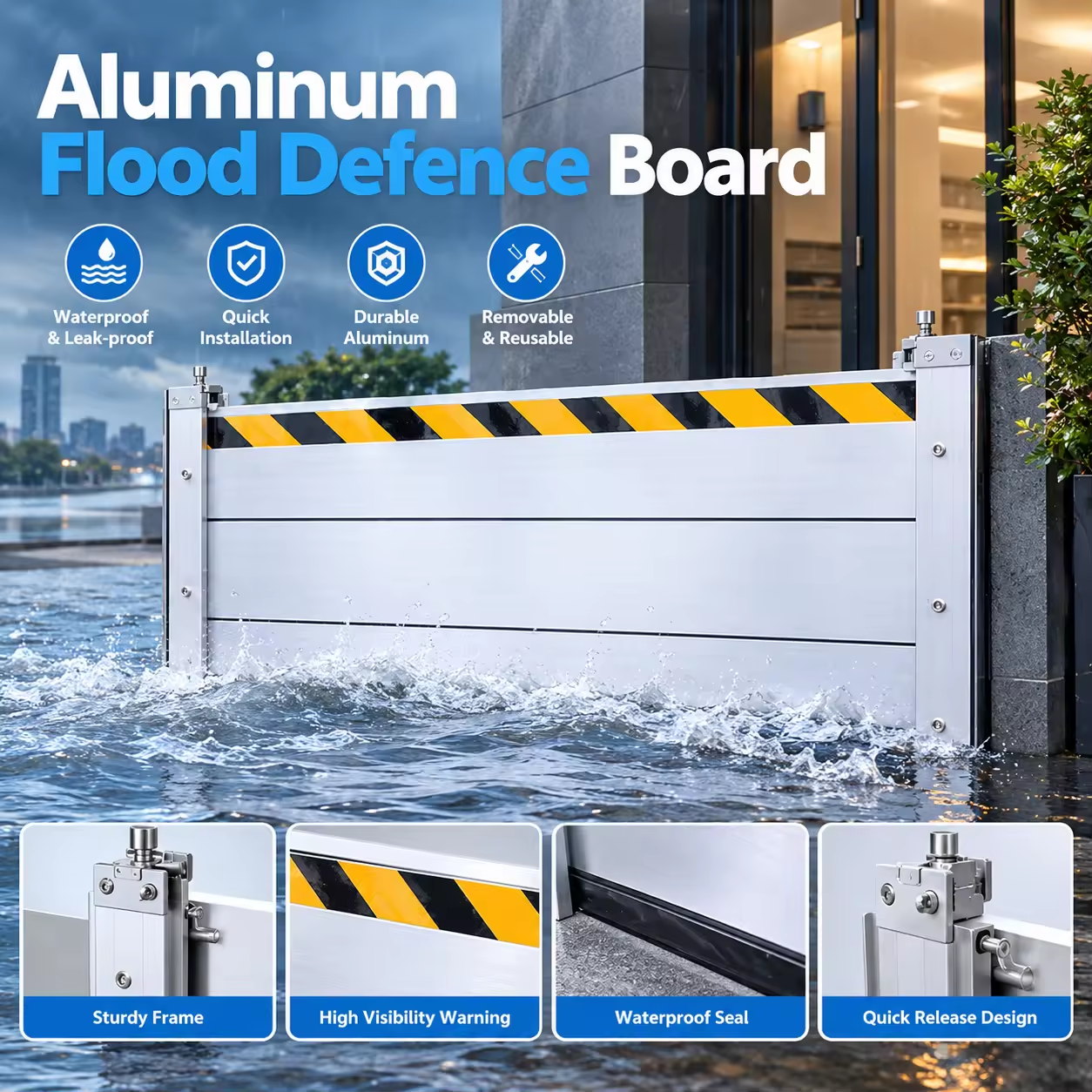

Aluminum Flood Defence Board — Detachable Water Barrier image 1
Factory Direct

Aluminum Flood Defence Board — Detachable Water Barrier

Detachable aluminum flood defence board for doorways, garages, basements and wall openings: slot-in panels with a screw-tightened compression seal and a reflective yellow and black strip.

MOQ
2 pieces
Supply Type
OEM / ODM / Buyer Label

Final quotation depends on specification, quantity and destination — request a quote for exact pricing.

Material
Aluminum Alloy
Panel Height
20 cm per panel
Panel Thickness
40 mm
Post Thickness
90 mm
Post Width
60 mm
Length / Height
Made to the opening size

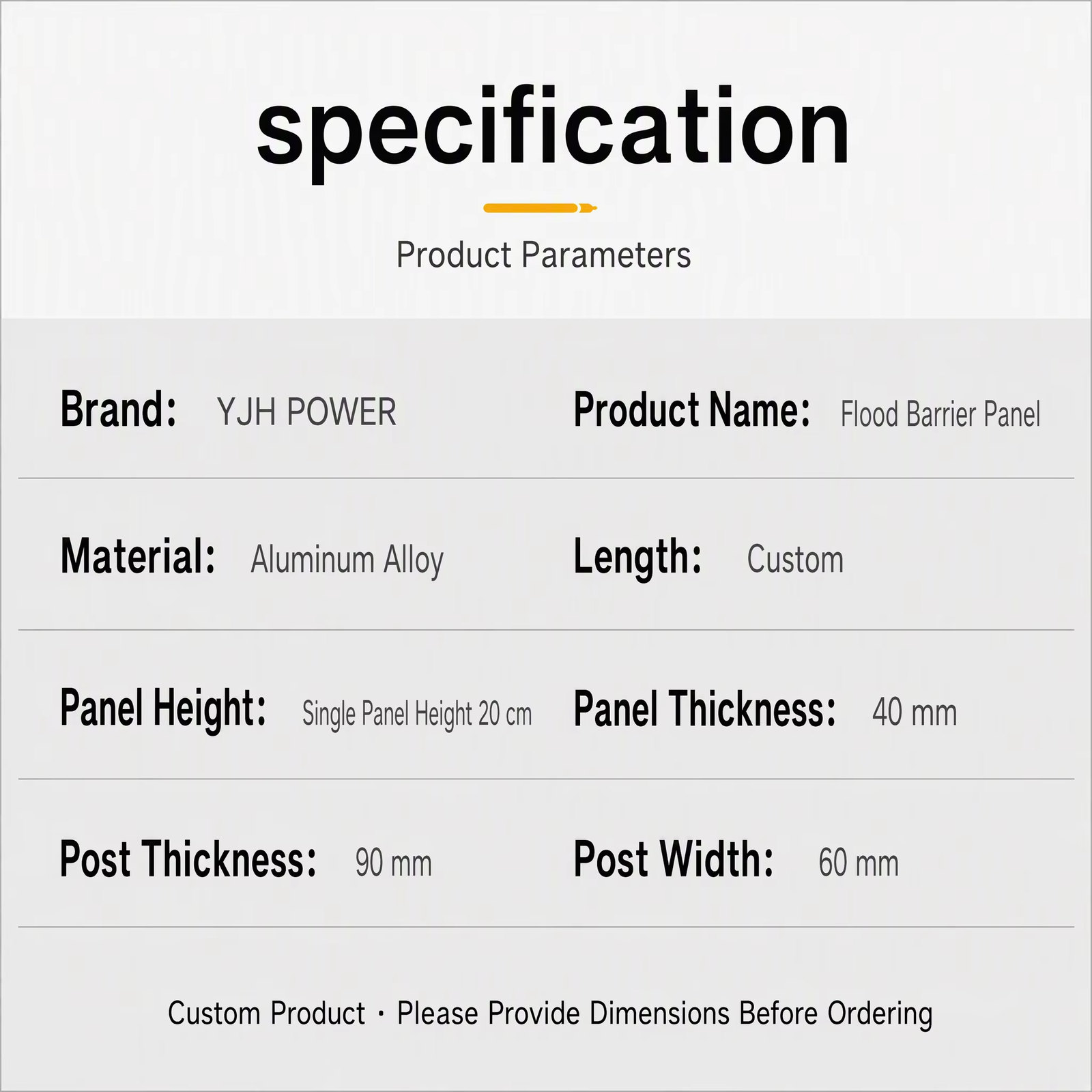

Product Attributes

MaterialAluminum Alloy
Panel Height20 cm per panel
Panel Thickness40 mm
Post Thickness90 mm
Post Width60 mm
Length / HeightMade to the opening size

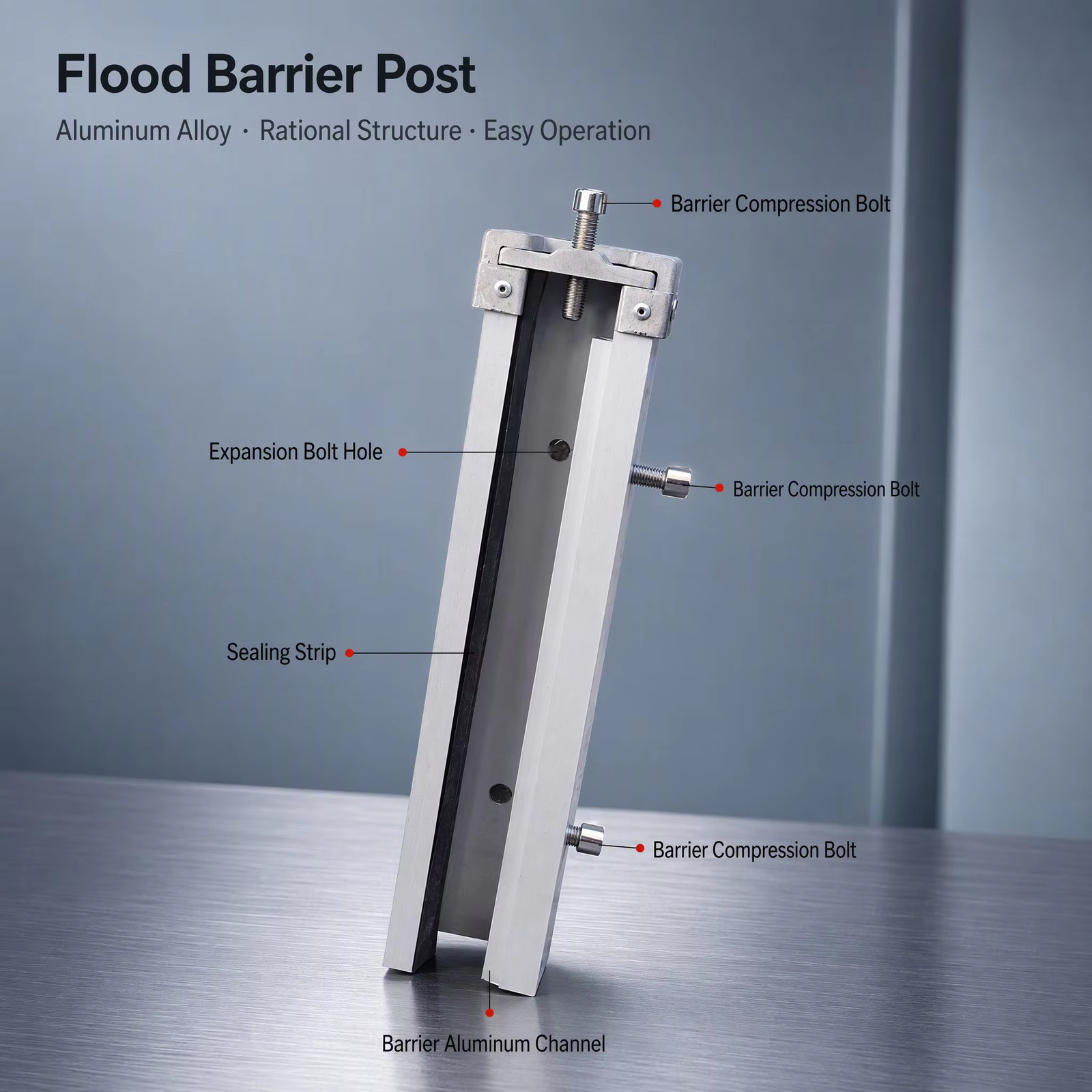

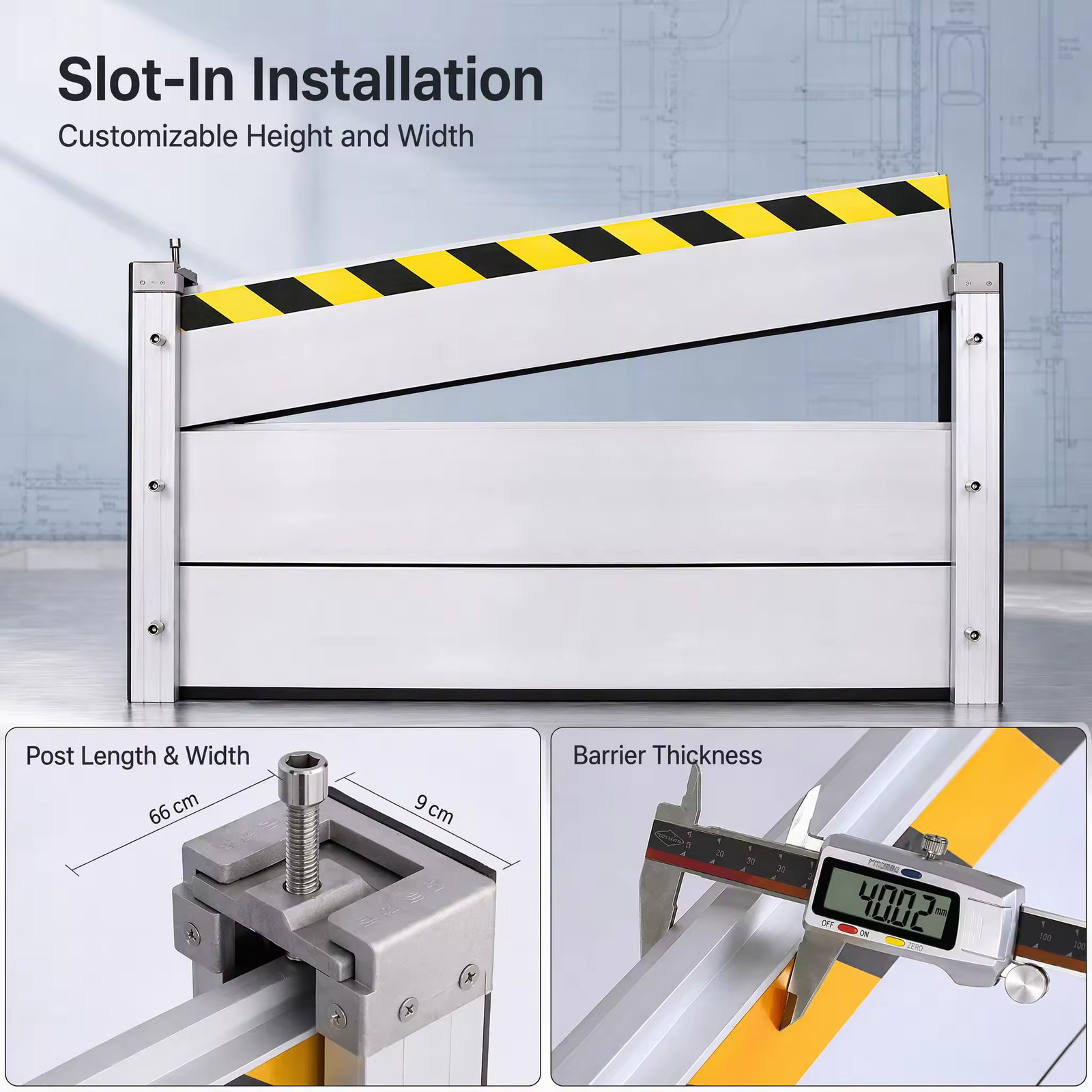

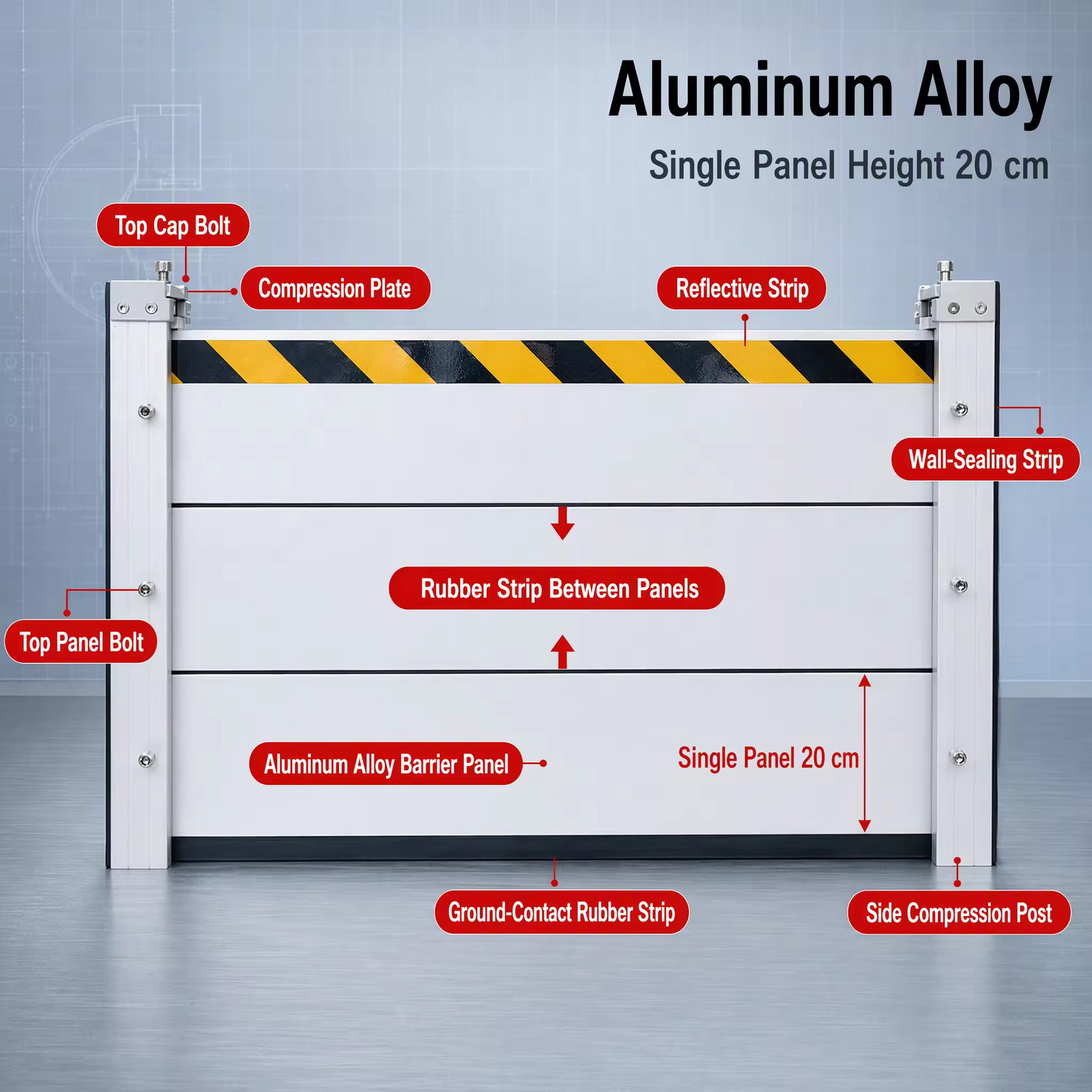

StructureWall-mounted posts with slot-in panels
SealingWaterproof rubber sealing strip, screw-tightened compression system
VisibilityYellow and black reflective strip

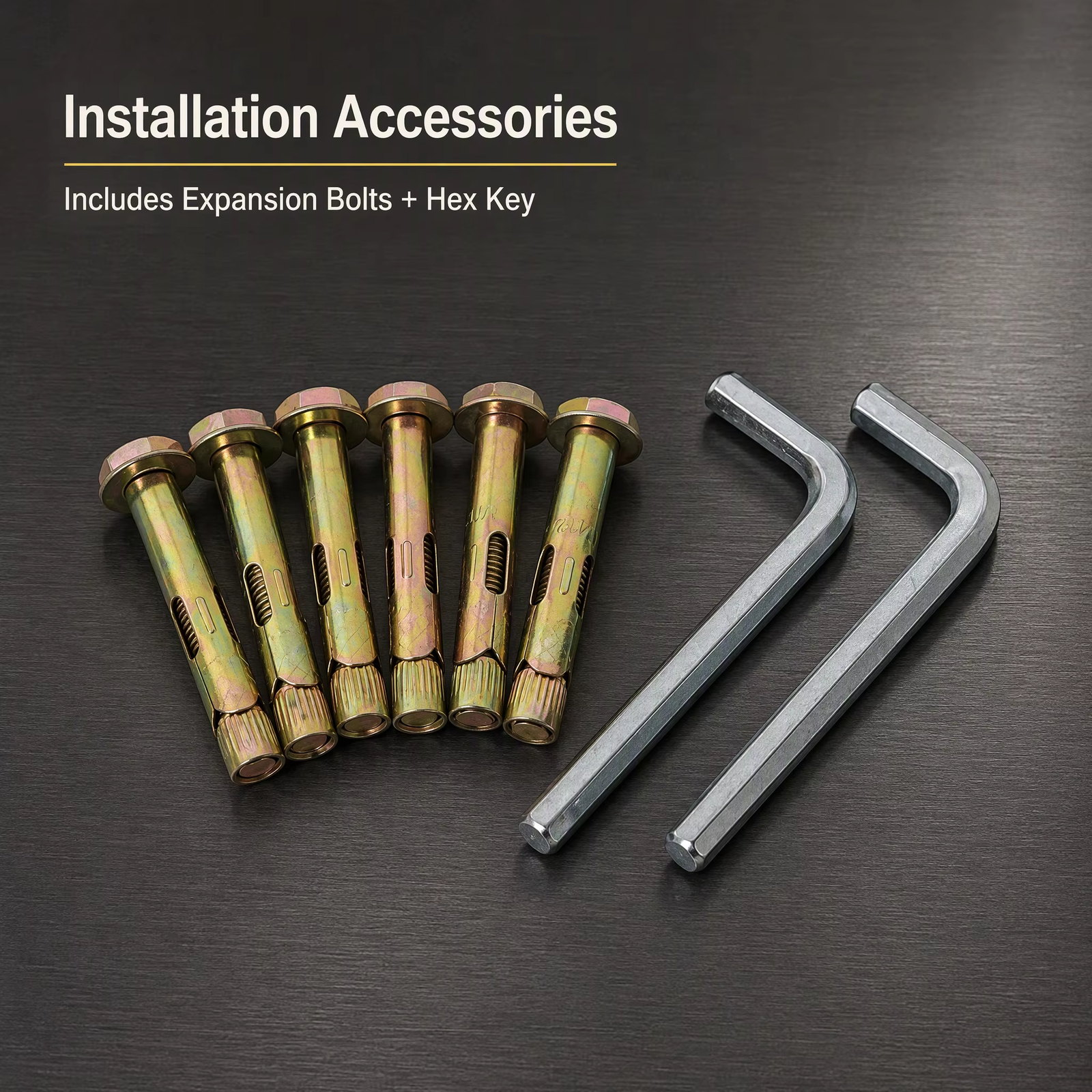

Installation AccessoriesExpansion bolts and hex key included
Installation Tolerance± 3 mm
Brand NameYJH POWER
Place of OriginHebei, China

Description

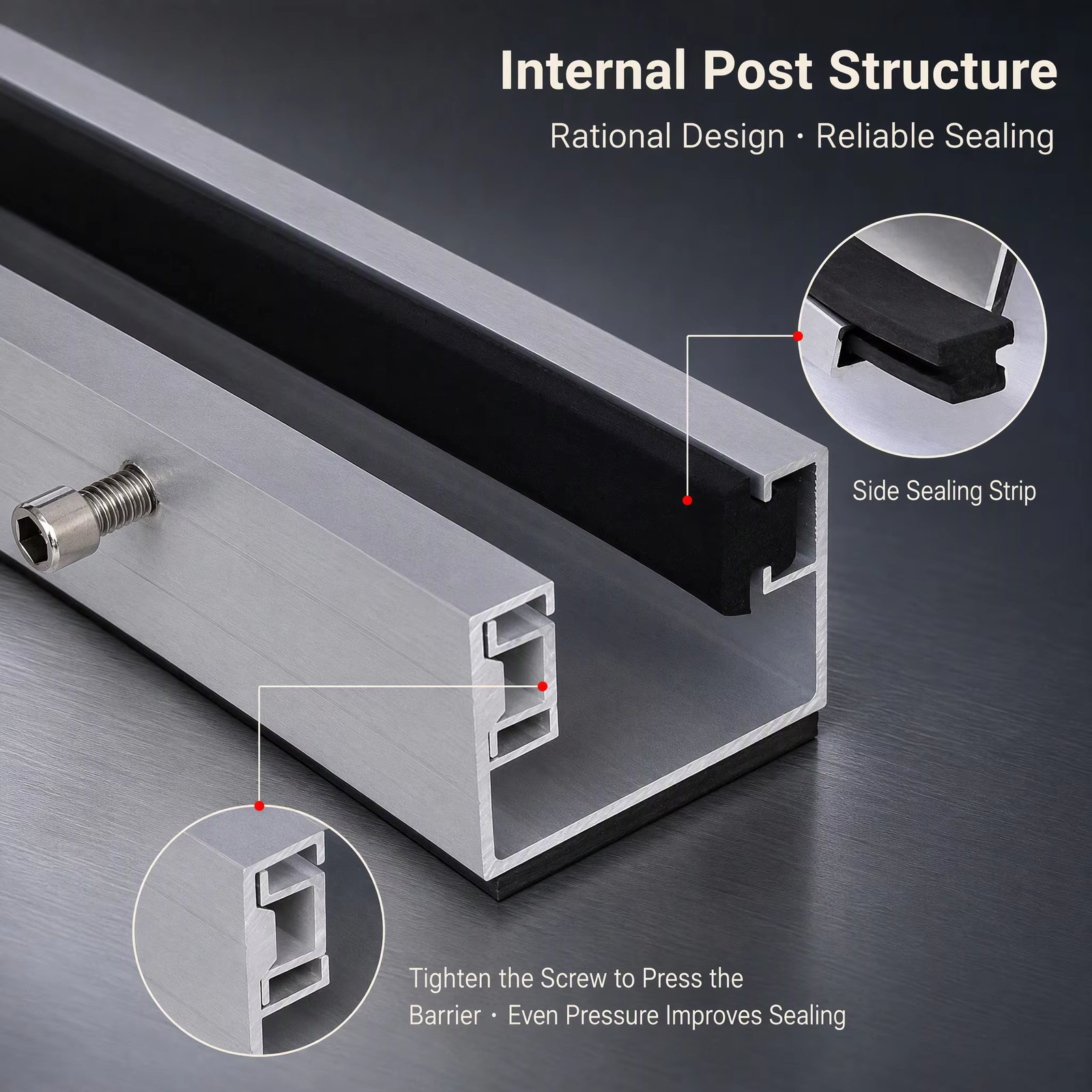

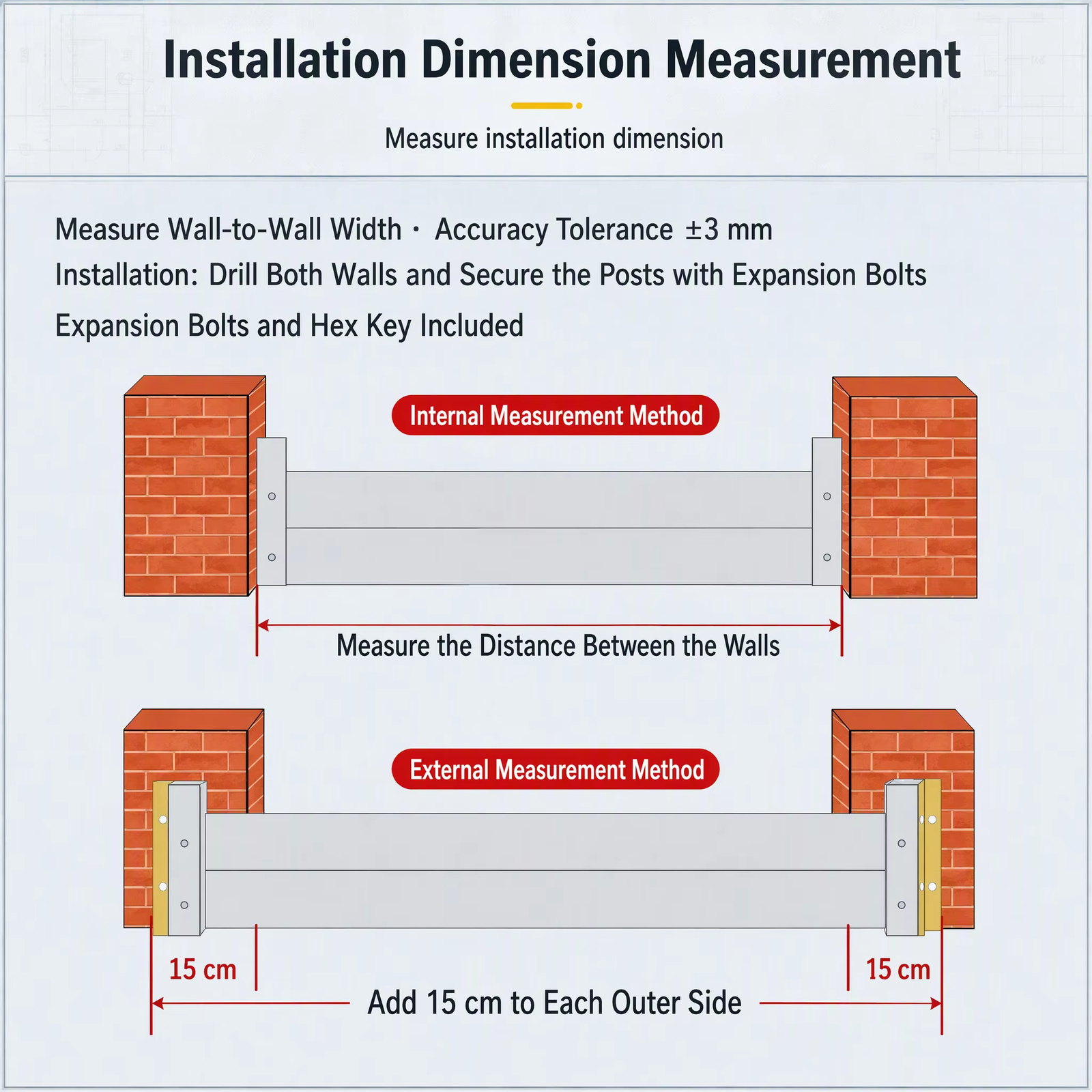

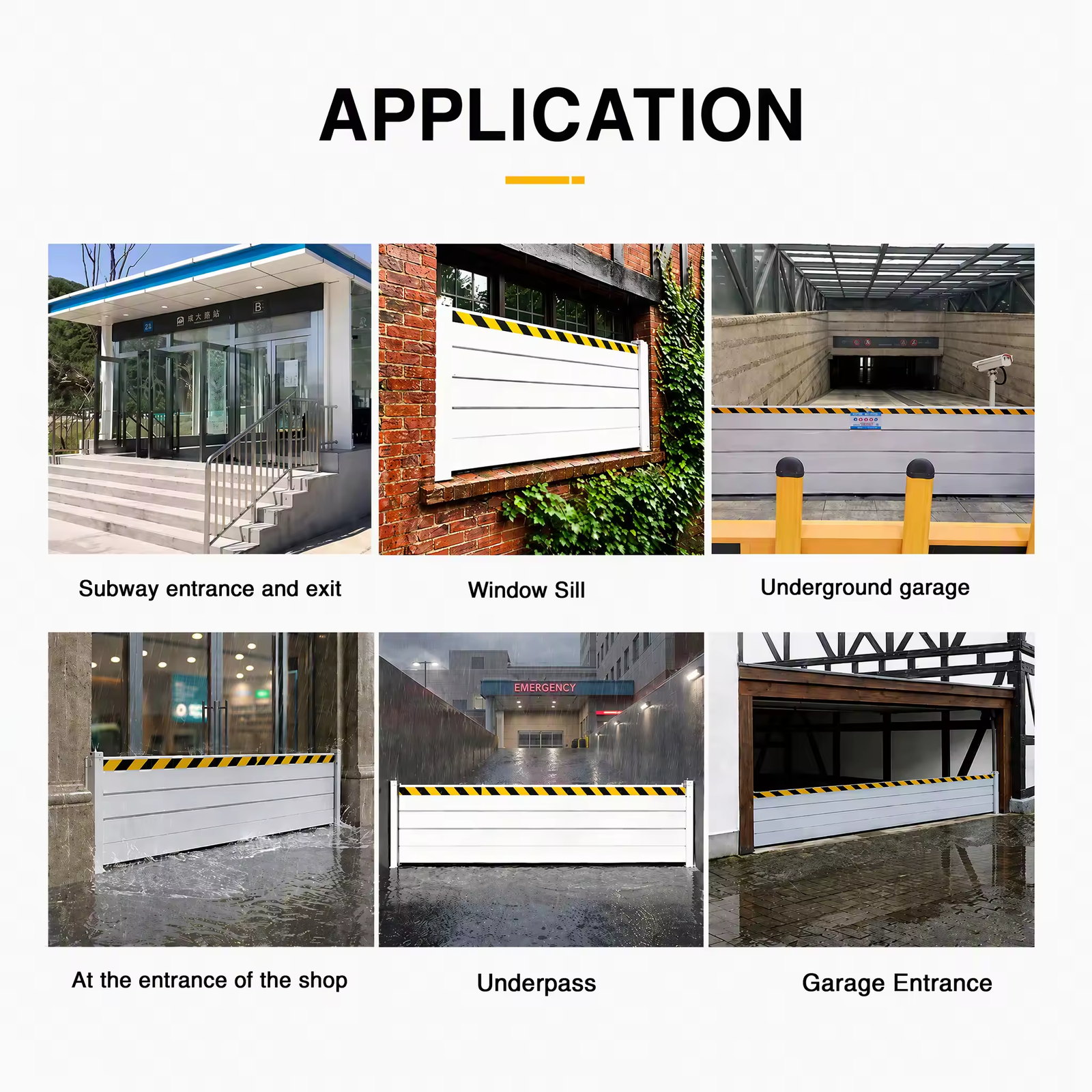

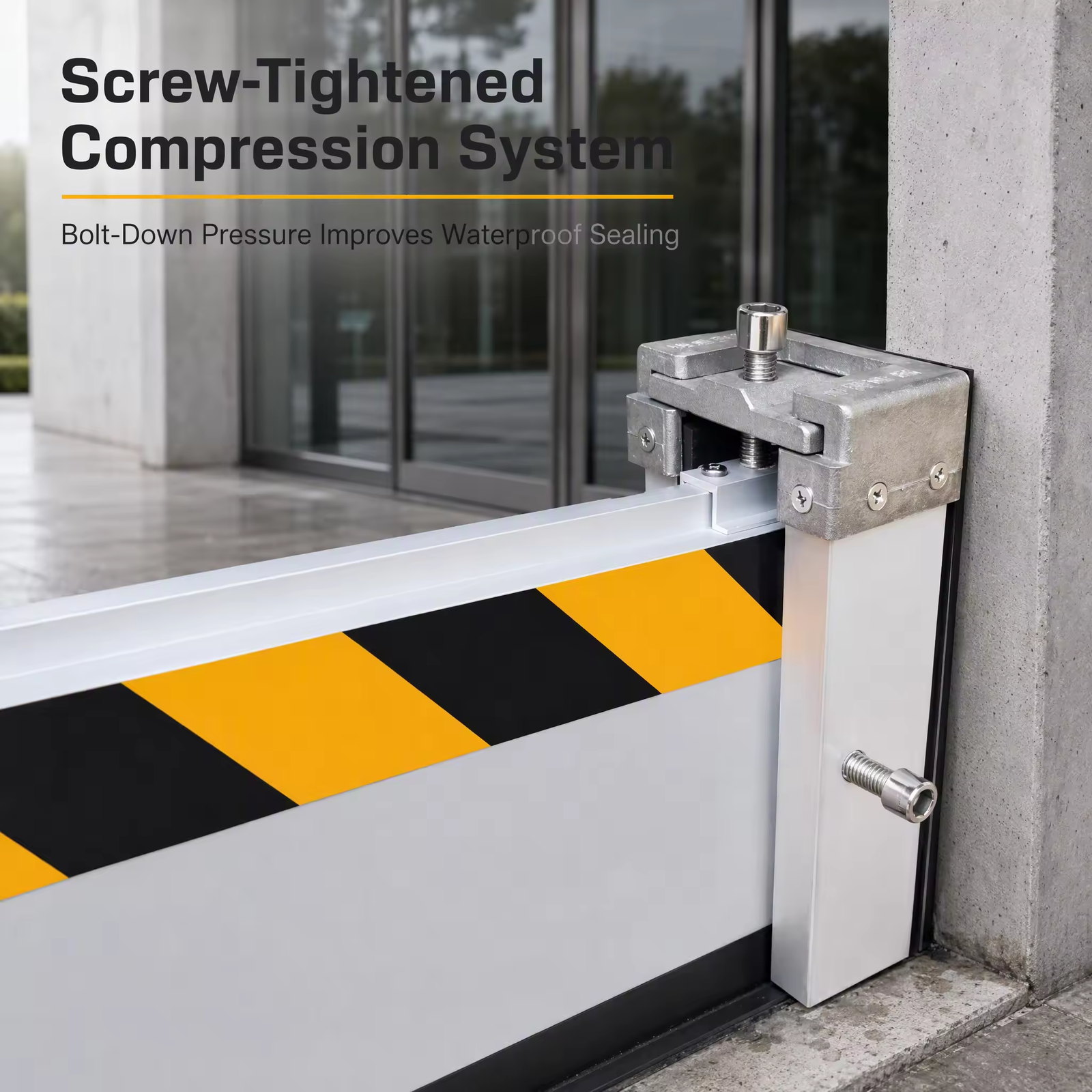

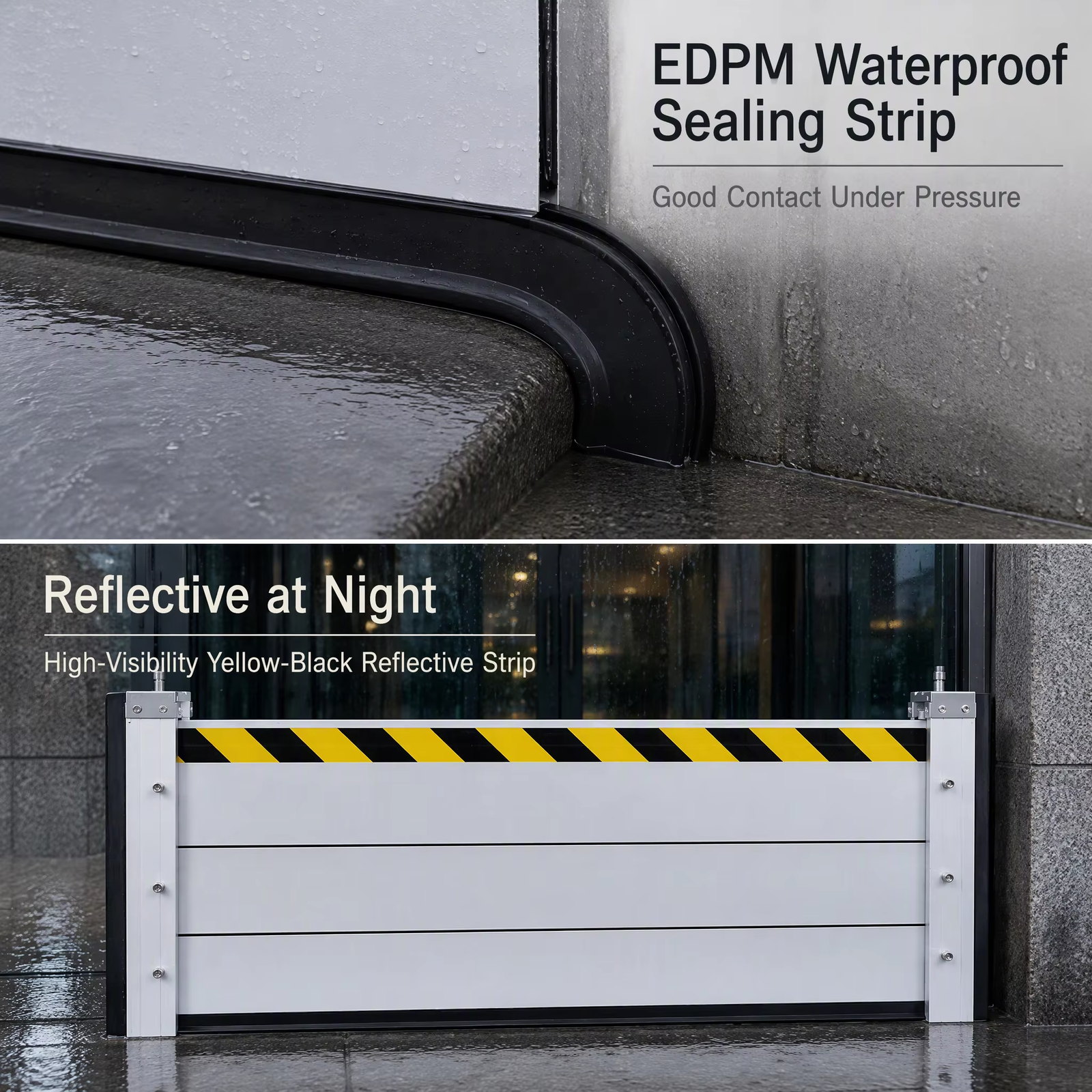

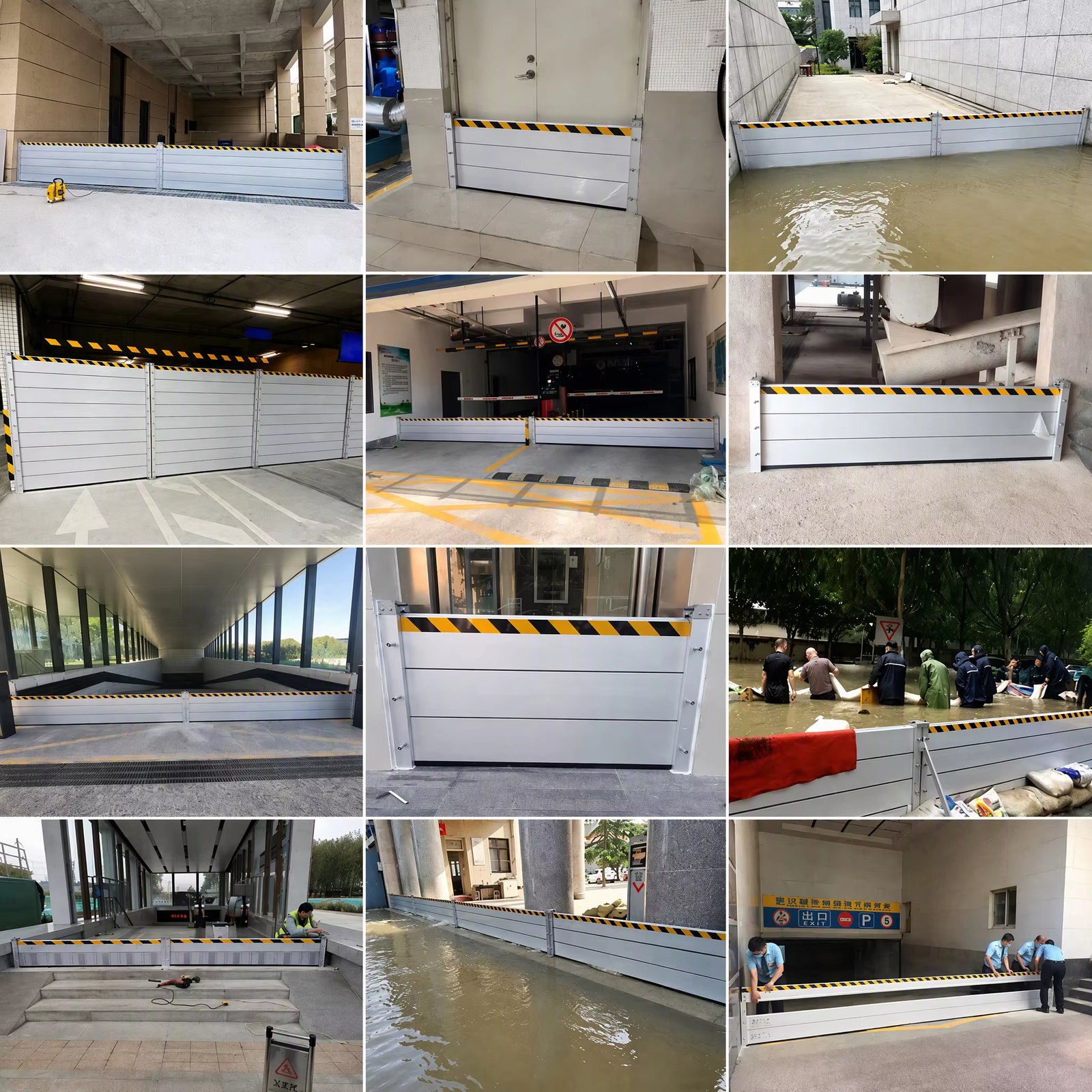

A detachable flood defence board that closes off a doorway, garage entrance, basement or wall opening when water is expected, and comes away again once the risk has passed. Aluminum alloy panels, 40 mm thick, slot into wall-mounted posts. Each panel covers 20 cm of height, and both height and width are made to the opening, so the barrier follows the doorway instead of being adapted to it. The seal is the point of the design. A screw-tightened compression system presses the panels against a waterproof rubber sealing strip, so the seal tightens under load rather than relying on the weight of the board alone. The yellow and black strip is reflective, so the barrier stays visible at night and in an underpass or basement where lighting is poor. Straightforward to install: drill both walls, secure the posts with the expansion bolts supplied, and measure wall to wall with a tolerance of ± 3 mm. Expansion bolts and a hex key are included with every set. Typical applications: subway entrance and exit, window sill, underground garage, shop entrance, underpass, garage entrance.
Aluminum Flood Defence Board — Detachable Water Barrier detail 1Aluminum Flood Defence Board — Detachable Water Barrier detail 2Aluminum Flood Defence Board — Detachable Water Barrier detail 3Aluminum Flood Defence Board — Detachable Water Barrier detail 4Aluminum Flood Defence Board — Detachable Water Barrier detail 5Aluminum Flood Defence Board — Detachable Water Barrier detail 6Aluminum Flood Defence Board — Detachable Water Barrier detail 7Aluminum Flood Defence Board — Detachable Water Barrier detail 8Aluminum Flood Defence Board — Detachable Water Barrier detail 9Aluminum Flood Defence Board — Detachable Water Barrier detail 10Aluminum Flood Defence Board — Detachable Water Barrier detail 11Aluminum Flood Defence Board — Detachable Water Barrier detail 12
Request a quote

Ask about Aluminum Flood Defence Board — Detachable Water Barrier

Send the quantity, the voltage class or size, and the standards your project calls for. Our export engineers reply within 24 hours with a quotation, lead time, and the test certificates available with the order.

  • Quotation and lead time within 24 hours, Mon–Sat
  • Test certificates supplied with the order
  • Factory direct — HEBEI YUJINHONG TECHNOLOGY CO., LTD.

Request a quote for this product

Goes straight to our export engineers with the model already noted — aluminum-flood-defence-board

Reply within 24 hours, Mon–SatOr chat on WhatsApp →
FAQ

Frequently asked questions

Answers below are taken directly from this product's recorded specification, packaging and delivery data.

What is the minimum order quantity (MOQ)?
The minimum order quantity for this product is 2 pieces.
What are the main technical specifications?
Material: Aluminum Alloy; Panel Thickness: 40 mm.
How is the product packed for shipment?
Single item; 150 × 90 × 90 cm carton; gross weight 10.0 kg
