YJH POWER — Hebei Yujinhong Technology Co., Ltd.
Home/Products/Electrical Accessories, Cables & Signage/Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²)
Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) image 1
Factory DirectCERoHS

Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²)

IP67 single-head solar PV extension cable with one pre-fitted connector, tinned copper conductor and XLPO insulation, for array runs that terminate at a junction box or inverter.

Supply Type
OEM / ODM / Buyer Label

Final quotation depends on specification, quantity and destination — request a quote for exact pricing.

Configuration
Single head (connector at one end)
Rated Voltage
1000 V / 1500 V DC
Cross Section
4 / 6 mm²
Conductor
Tinned copper
Insulation
XLPO
IP Rating
IP67
Request a Quote WhatsApp Us Download Datasheet

Product Attributes

ConfigurationSingle head (connector at one end)
Rated Voltage1000 V / 1500 V DC
Cross Section4 / 6 mm²
ConductorTinned copper
InsulationXLPO
IP RatingIP67
CertificatesCE / RoHS
Brand NameYJH POWER
Place of OriginHebei, China

Description

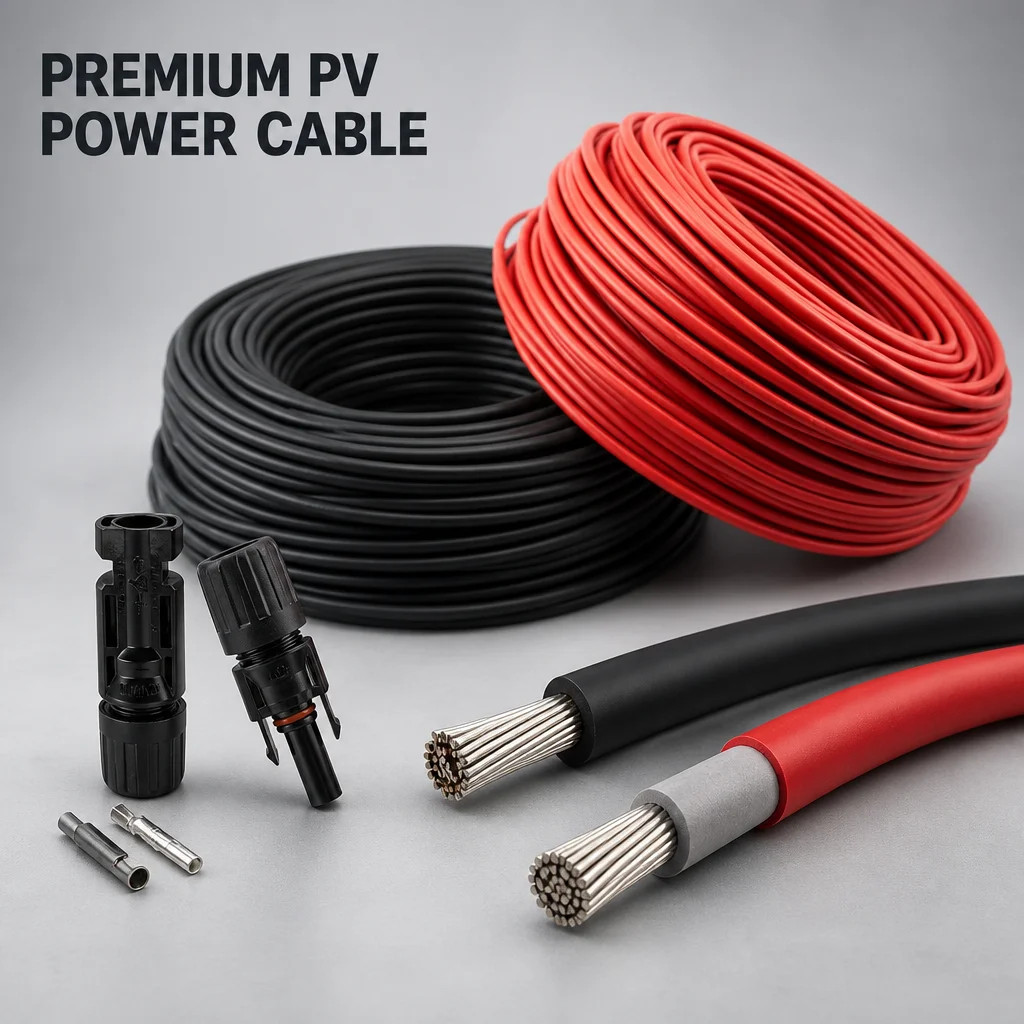

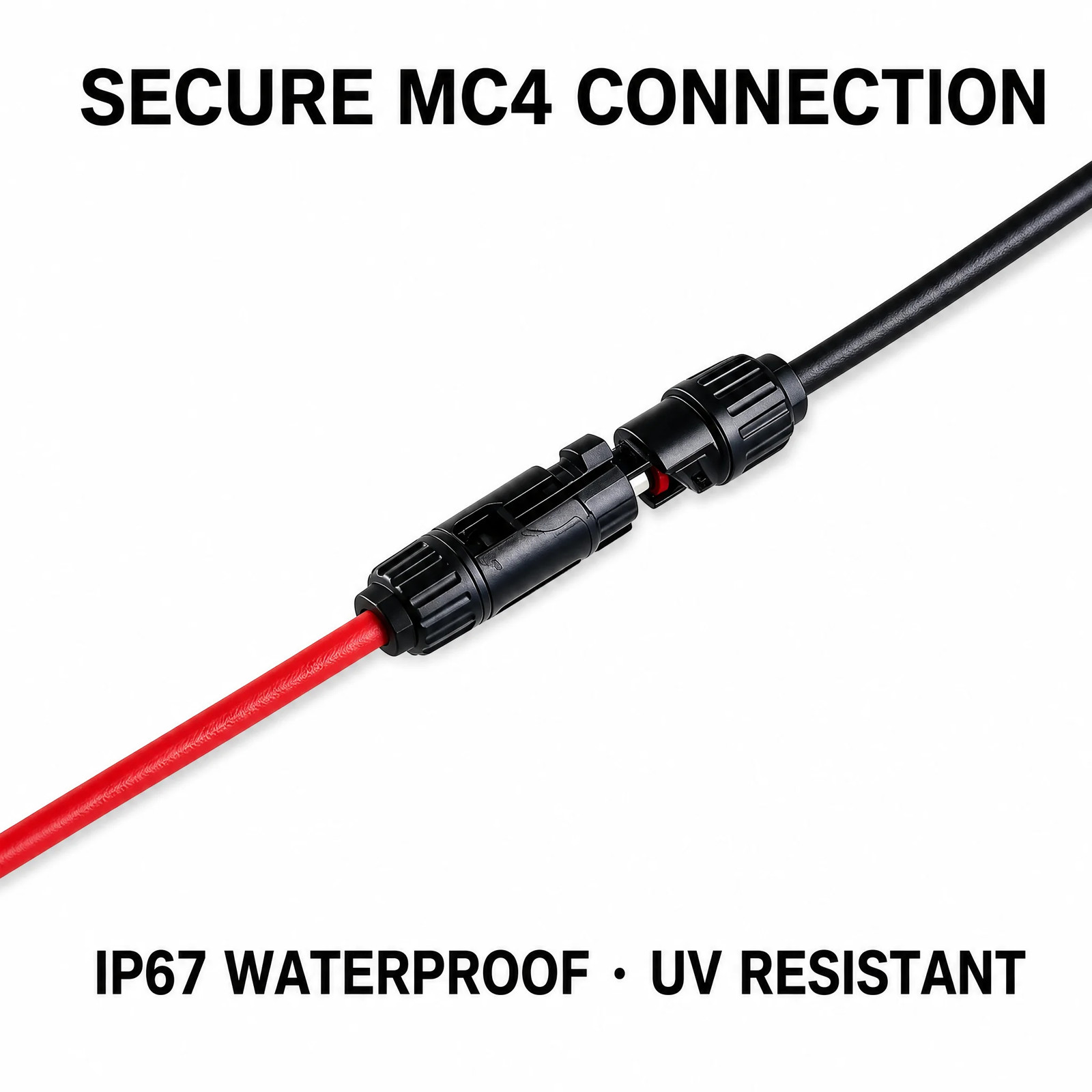

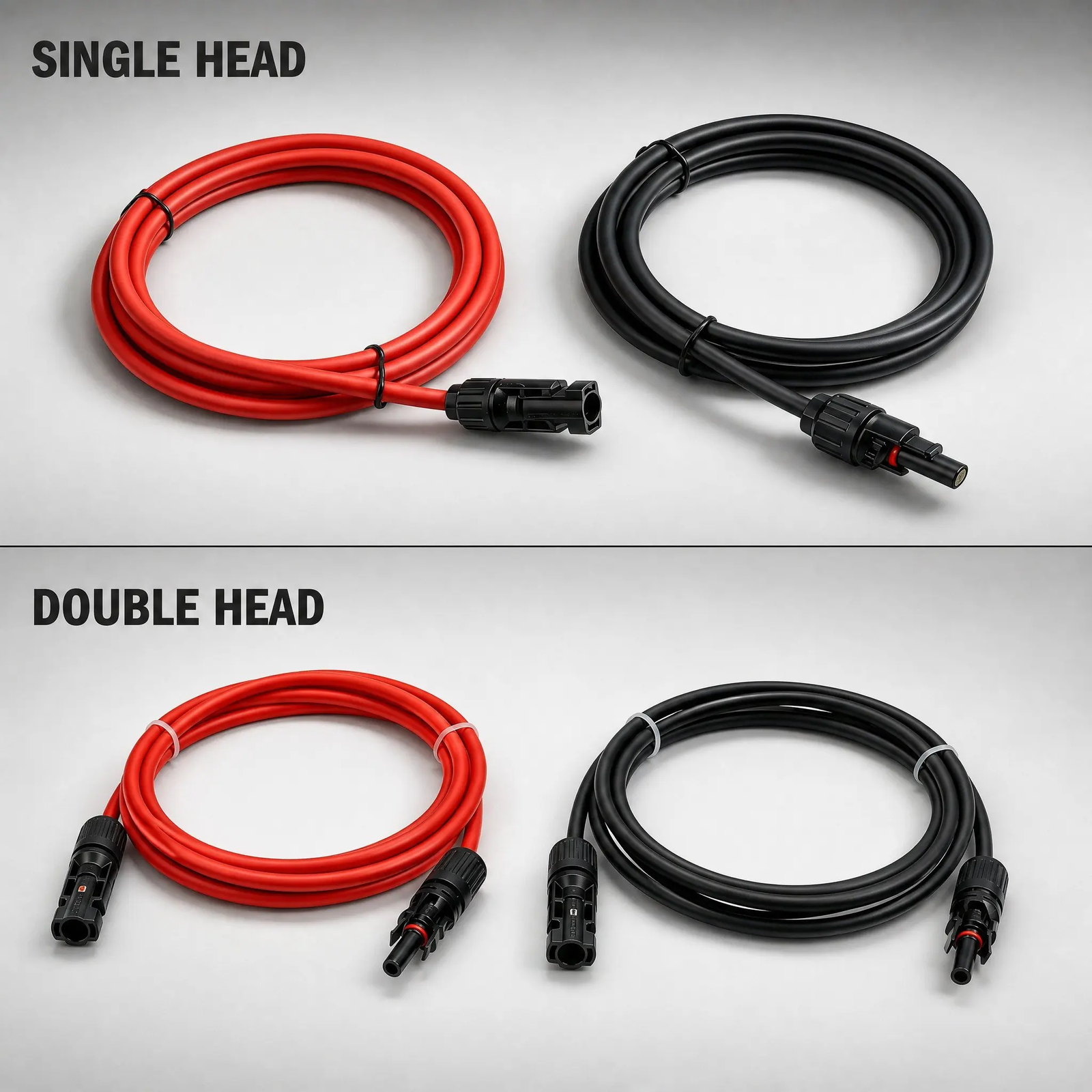

One end pre-terminated: the single-head assembly is the right choice when the cable runs from an array to a junction box, combiner or inverter terminal rather than into another connector. Tinned copper conductor: tinned strands resist the oxidation that attacks bare copper in the humid, thermally cycled environment inside a PV array. XLPO insulation: cross-linked polyolefin insulation and jacket are specified for continuous outdoor exposure to UV, ozone and repeated temperature cycling. 1000 V / 1500 V DC: rated for modern string inverter system voltages, available in 4 mm² and 6 mm². IP67 sealed joints: the fitted connector keeps the termination waterproof against rain, wash-down and condensation. Supplied as matched red and black leads, in lengths from 1 m upwards. Compliance: CE and RoHS.

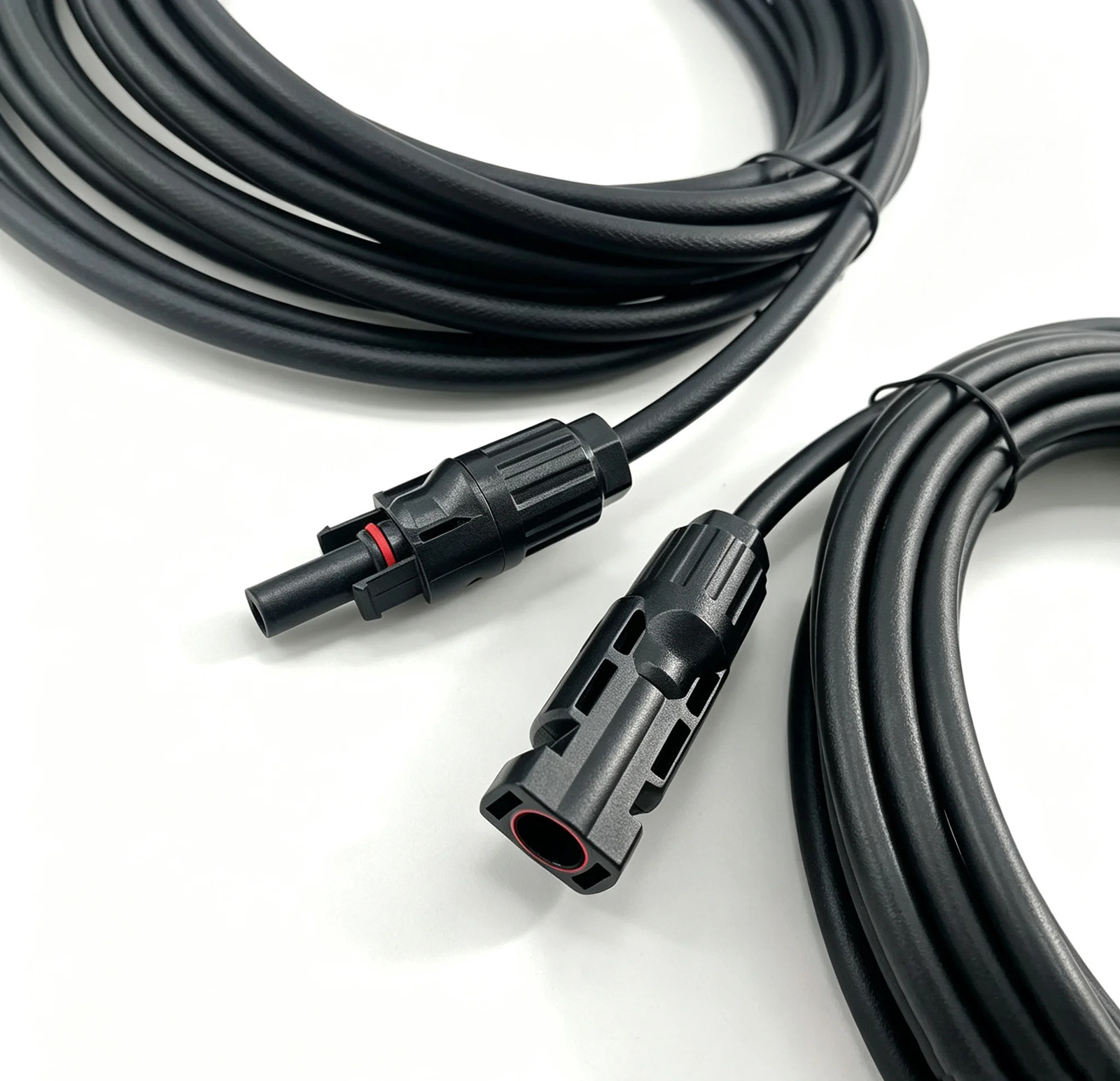

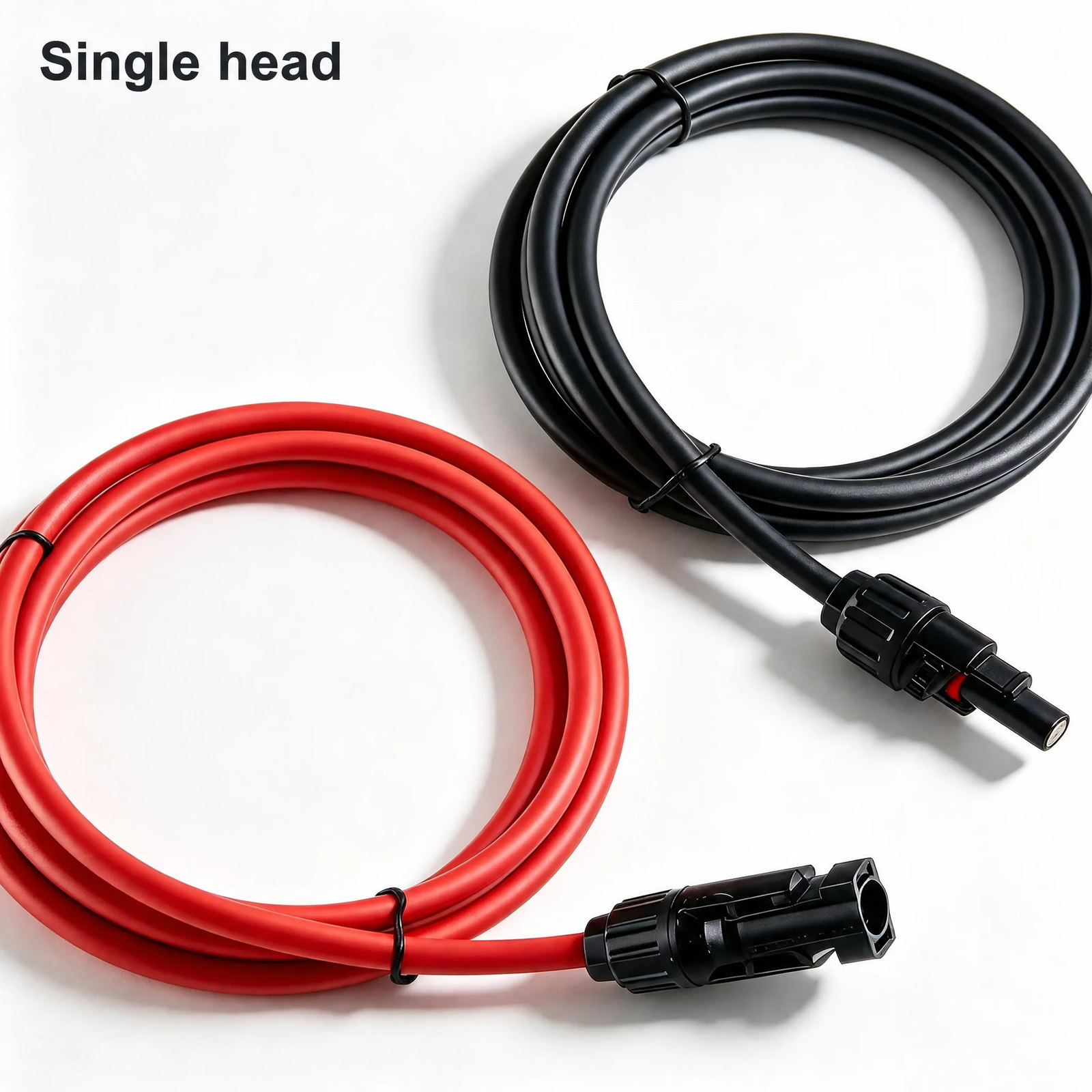

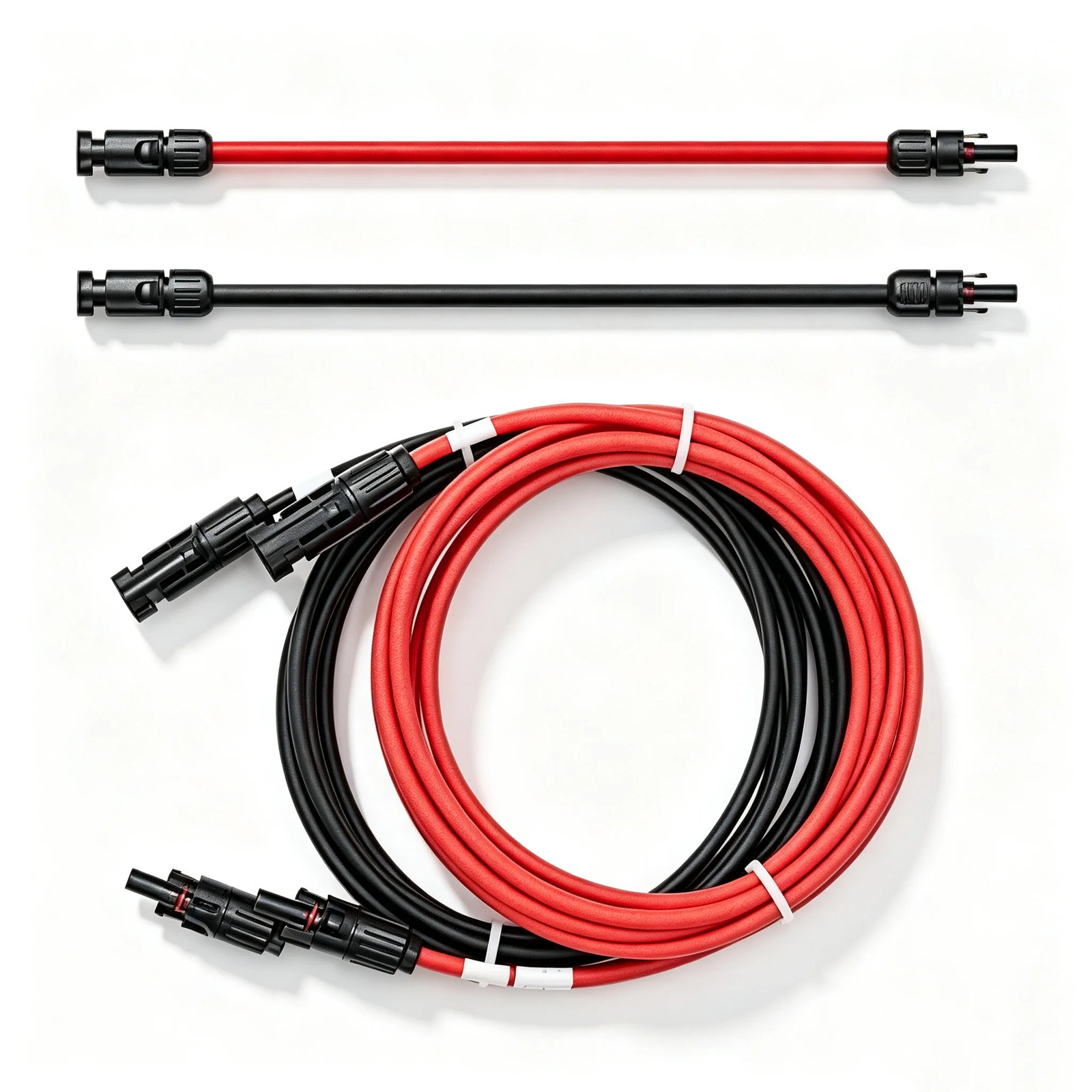

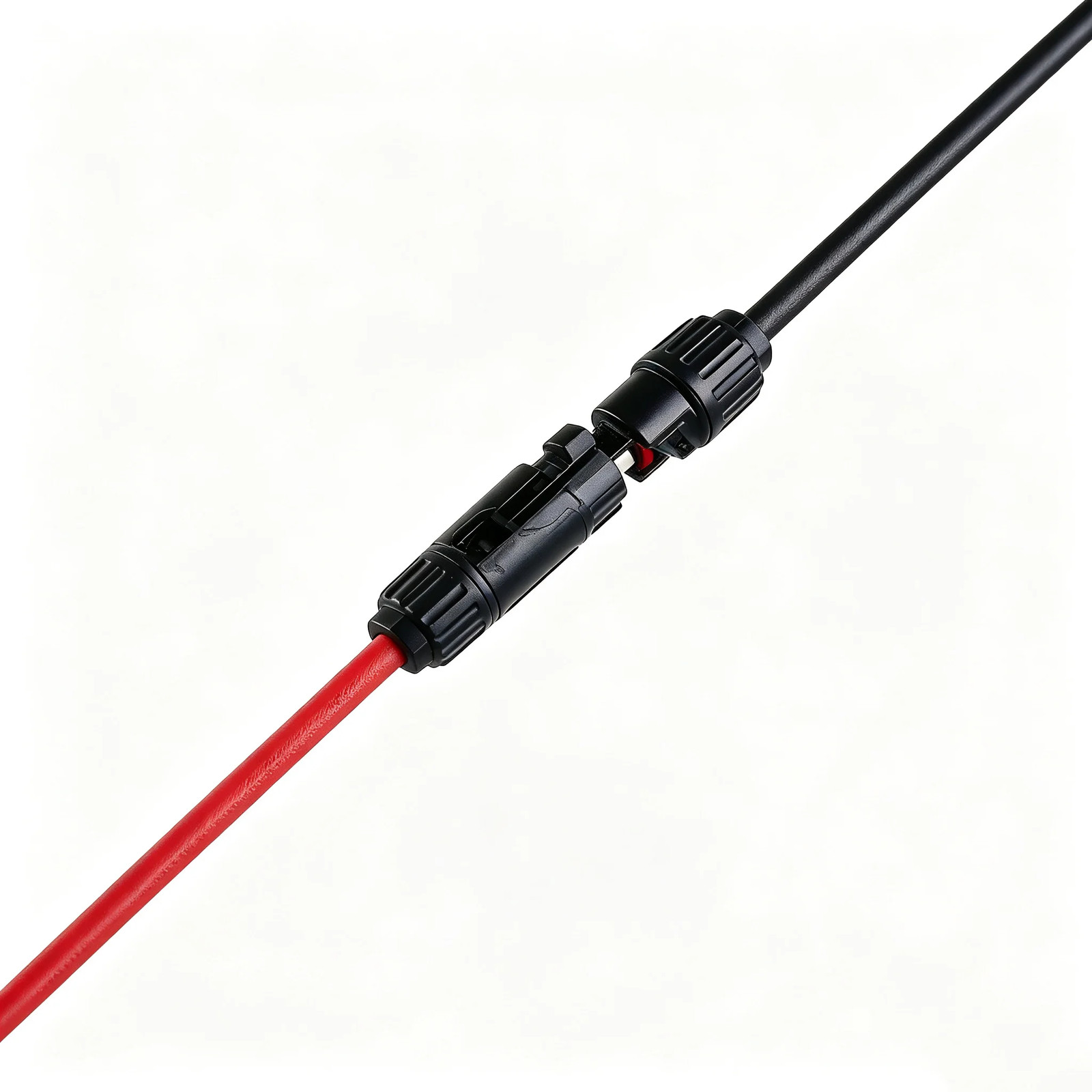

Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 1Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 2Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 3Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 4Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 5Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 6Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 7Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 8Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 9Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 10Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 11Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 12Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 13Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 14Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 15Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 16Single-Head IP67 Solar PV Extension Cable 1000 V / 1500 V (4 / 6 mm²) detail 17
