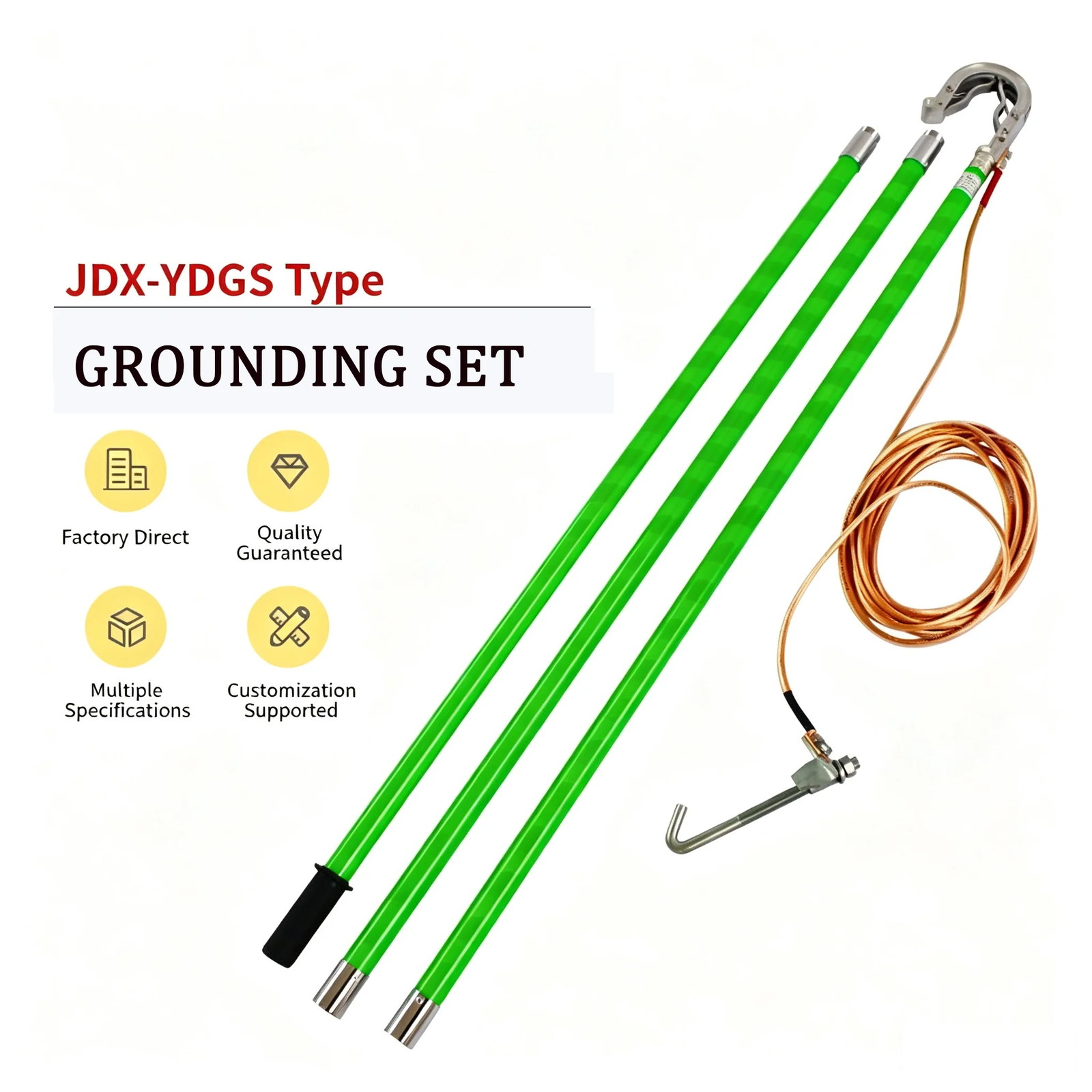

27.5 kV Portable Railway Catenary Grounding Set with Operating Rod
Portable 27.5 kV grounding set for railway high-voltage catenary work: three-section epoxy resin operating rod, high-purity bare copper conductor and a gooseneck hook that clamps onto the contact wire.
Supply Type
OEM / ODM / Buyer Label
Final quotation depends on specification, quantity and destination — request a quote for exact pricing.
- Standard
- IEC 61230
- Model Number
- JDX-YDGS
- Voltage Class
- 27.5 kV
- Application
- Railway high-voltage catenary grounding
- Conductor
- High-purity bare copper, 25 mm²
- Operating Rod
- Epoxy resin, three-section screw assembly
Product Attributes
| Standard | IEC 61230 |
| Model Number | JDX-YDGS |
| Voltage Class | 27.5 kV |
| Application | Railway high-voltage catenary grounding |
| Conductor | High-purity bare copper, 25 mm² |
| Operating Rod | Epoxy resin, three-section screw assembly |
| Clamp Type | Gooseneck grounding hook + galvanised rail clamp |
| Earth Cable Length | 8 m / 12 m / 15 m |
| Colour | Red / yellow / green |
| Brand Name | YJH POWER |
| Place of Origin | Hebei, China |
Description
Purpose-built for railway high-voltage catenary lines: this portable grounding set earths the overhead contact wire during maintenance, so the circuit is proved dead before work starts.

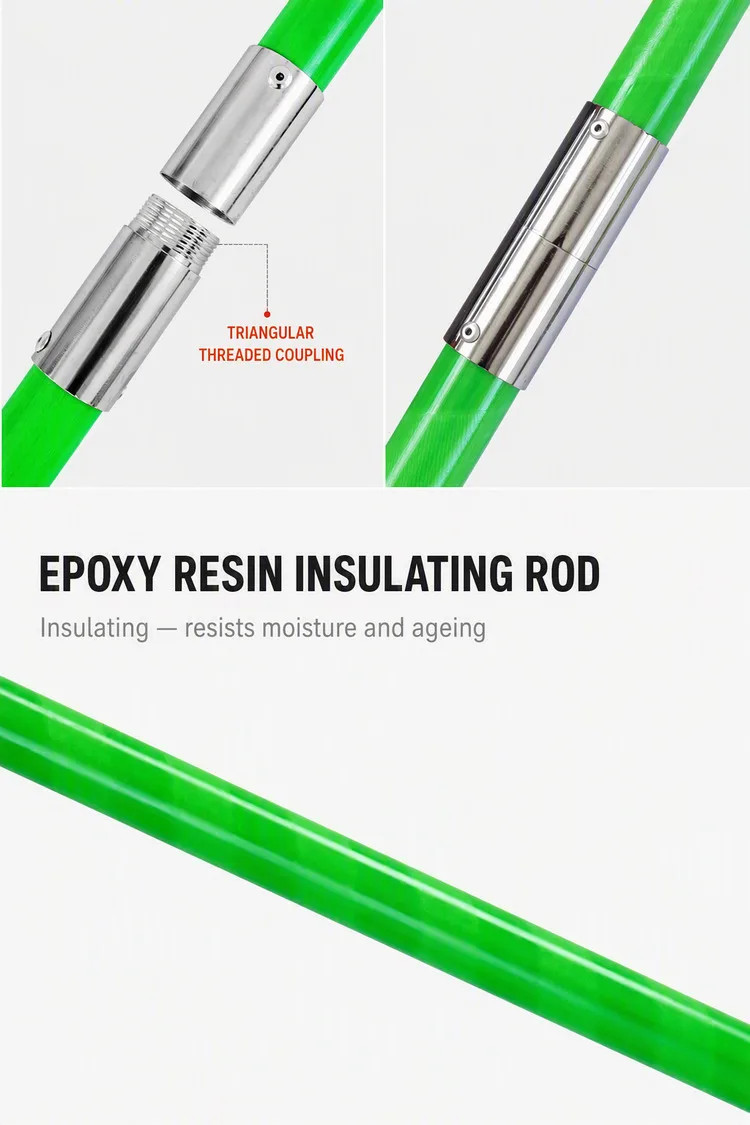

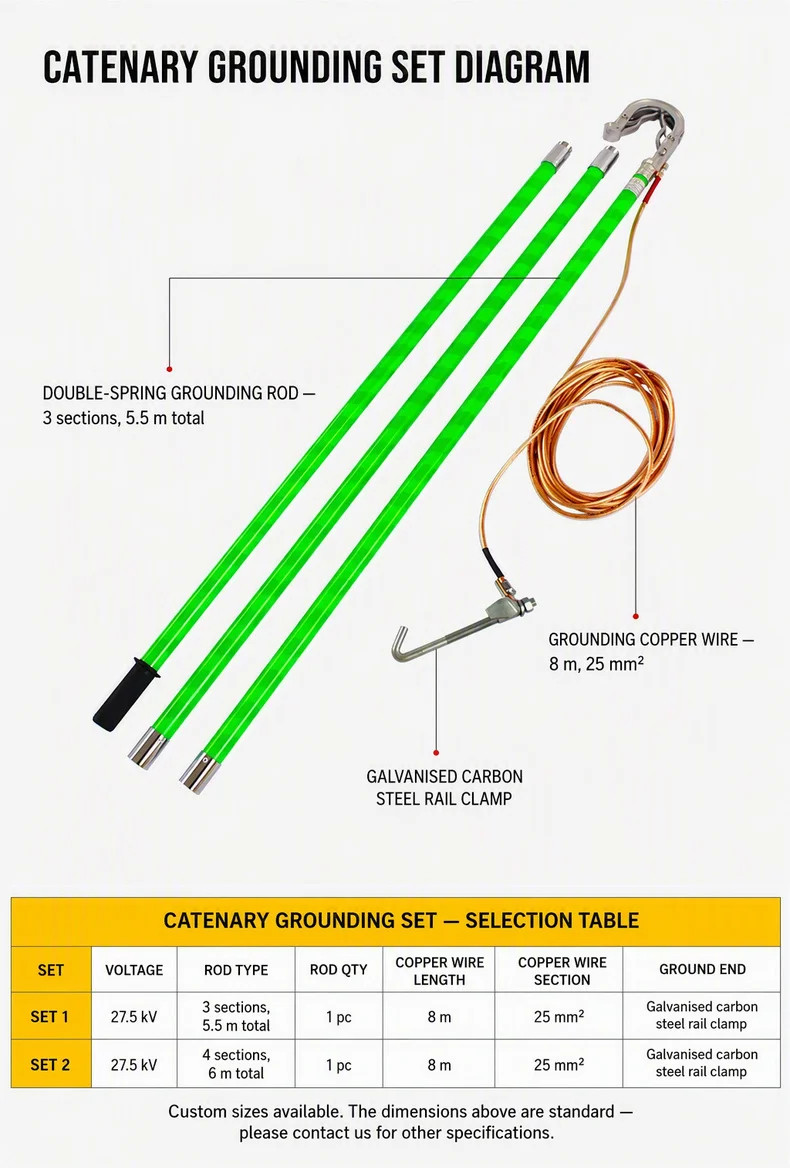

Three-section epoxy resin operating rod: insulated, moisture and age resistant, with chrome-plated threaded joints that screw together for field assembly. The three-section design keeps the packed length transportable while still reaching catenary height.

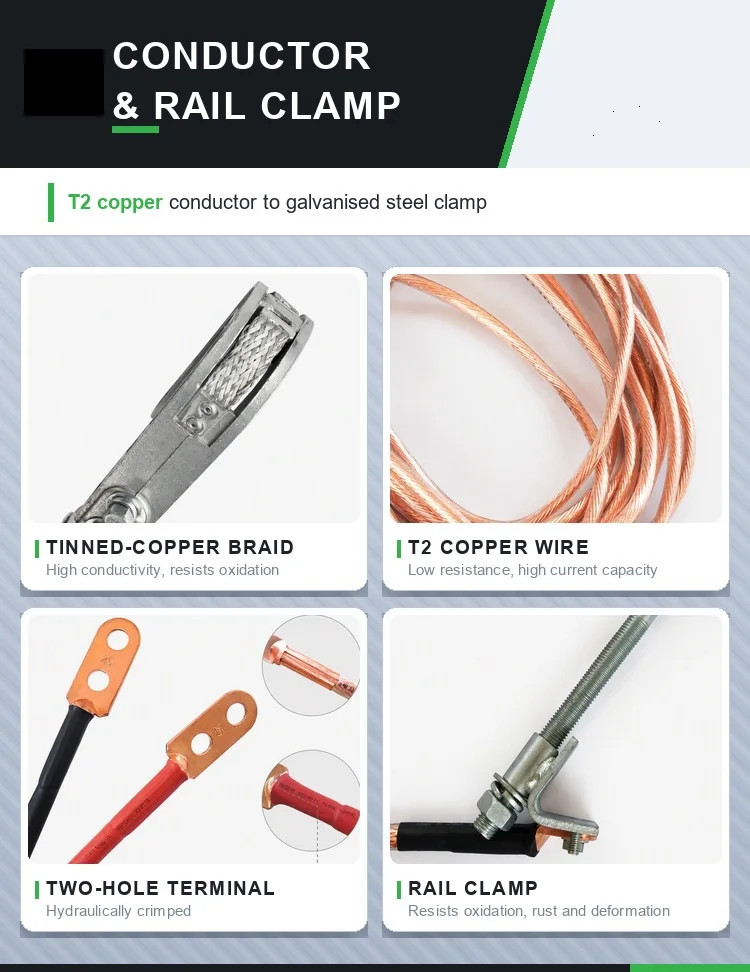

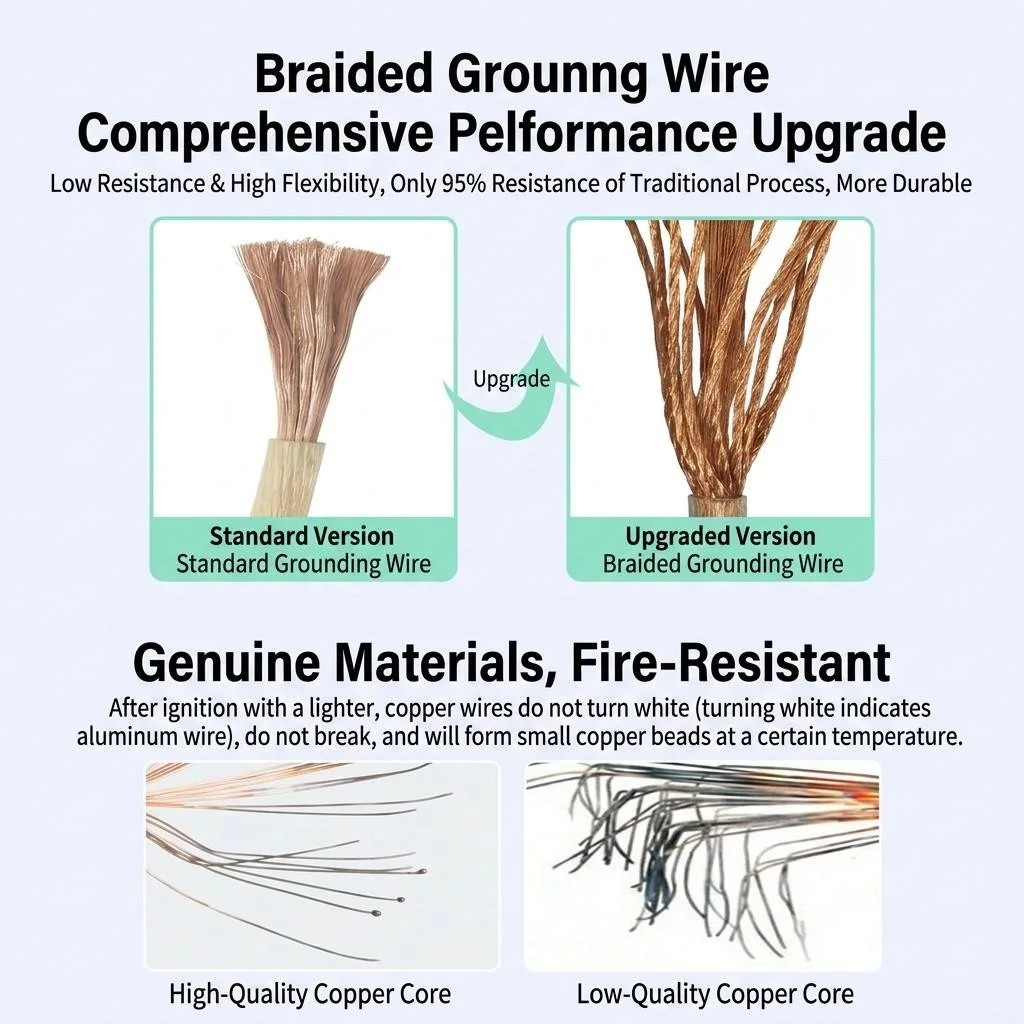

High-purity bare copper conductor, 25 mm²: supplied in 8 m, 12 m and 15 m lengths, with the flexible copper braid coiled ready for deployment.

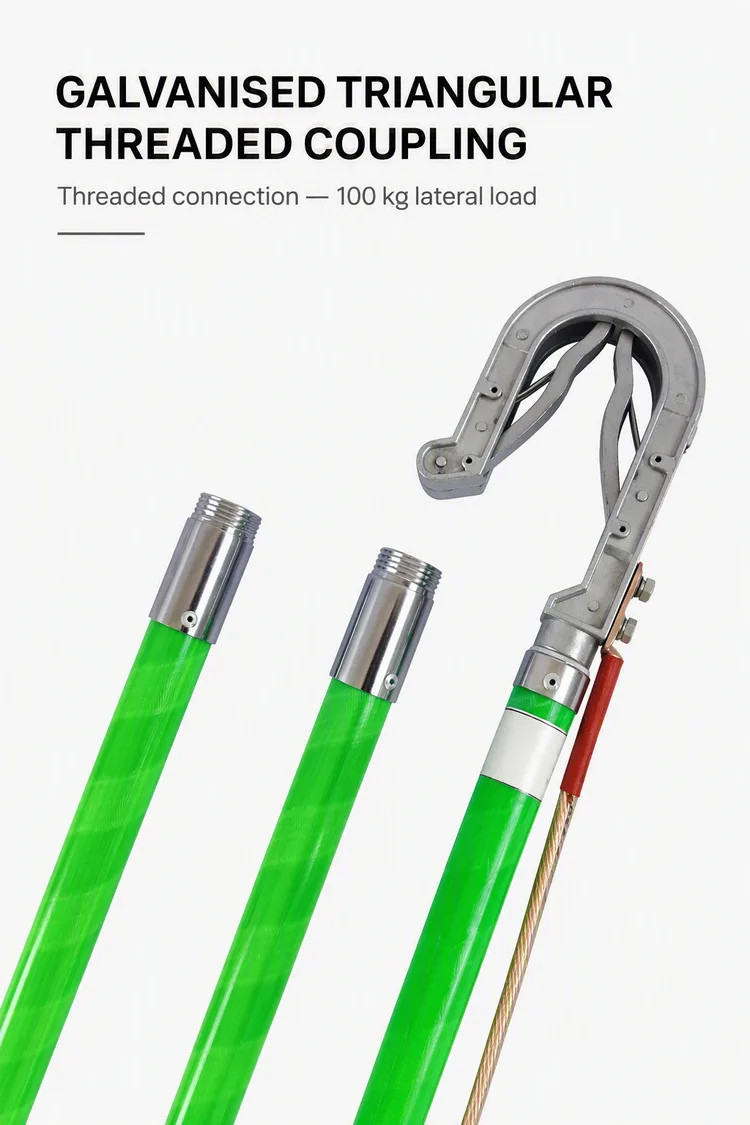

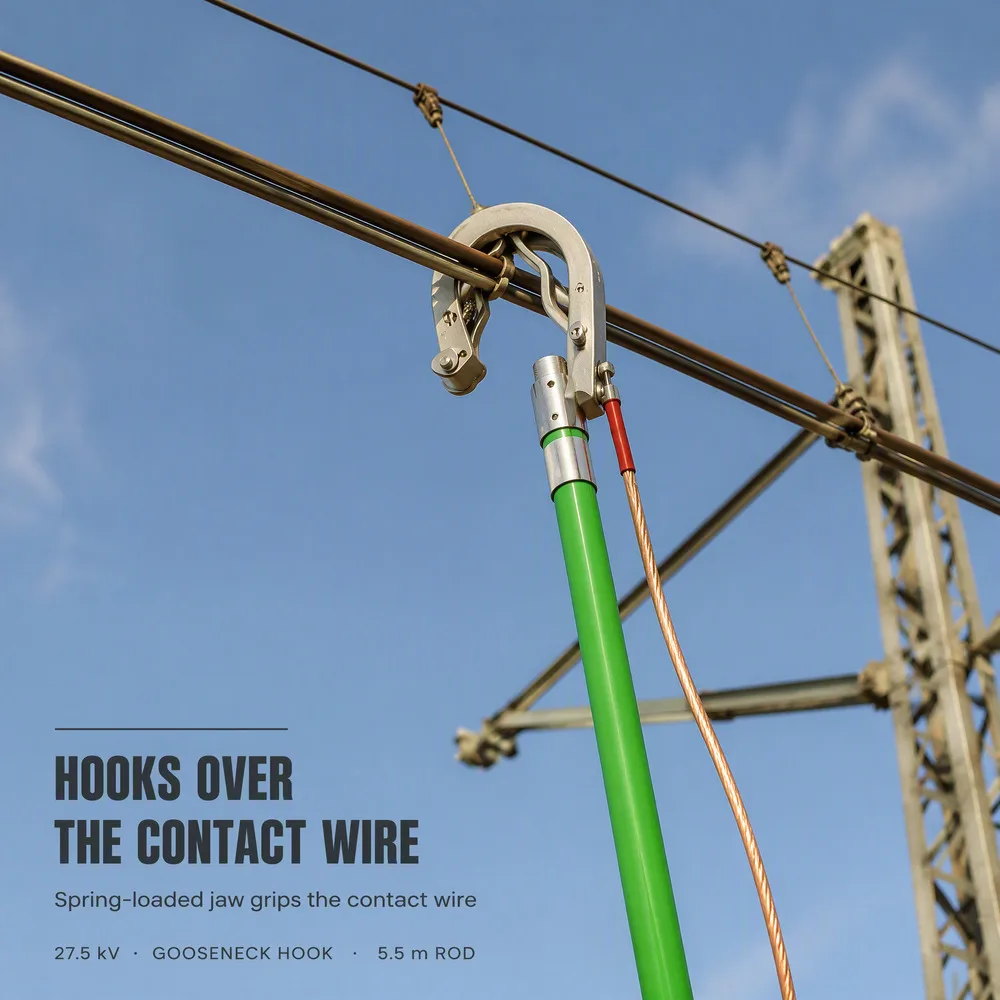

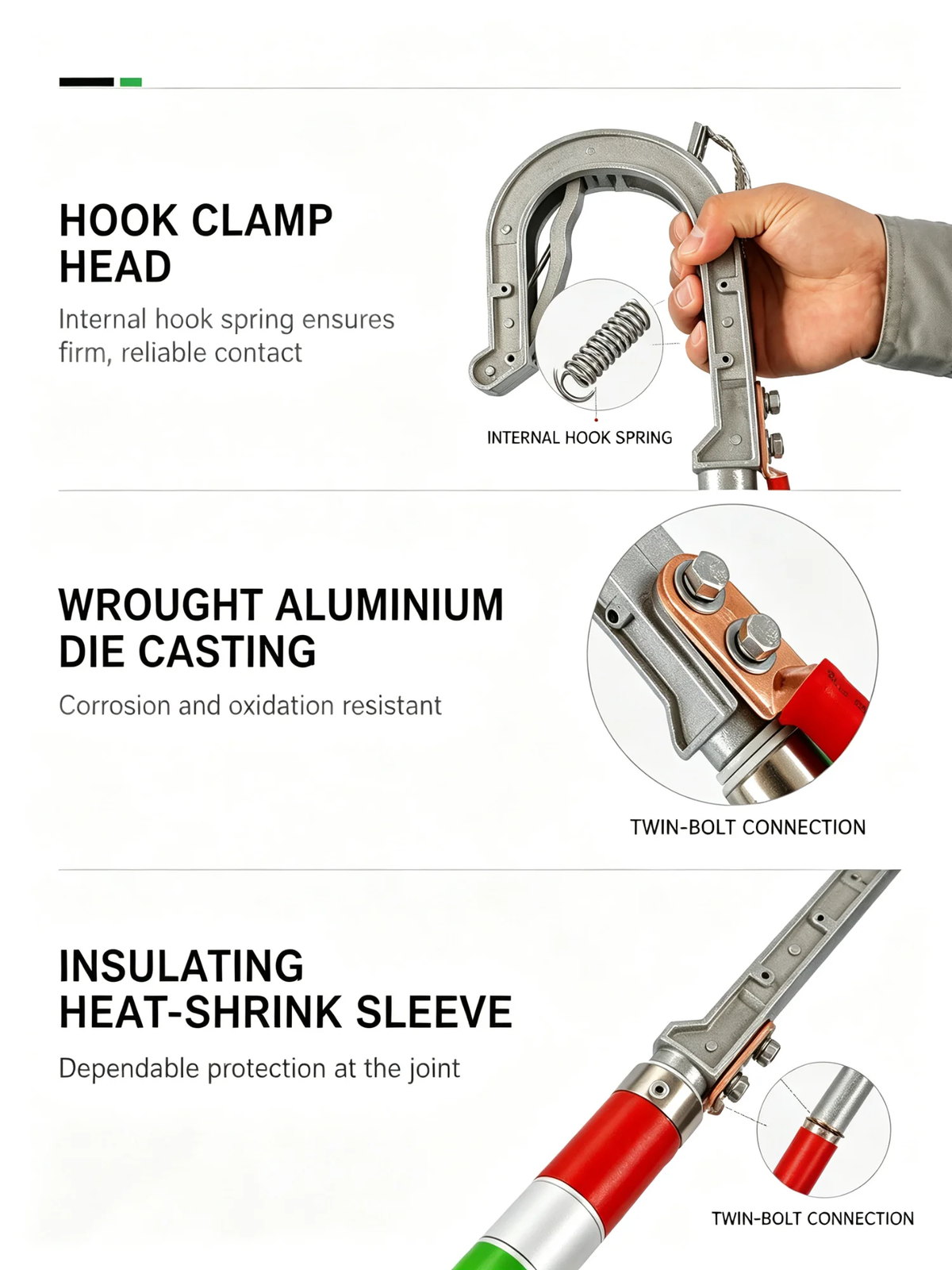

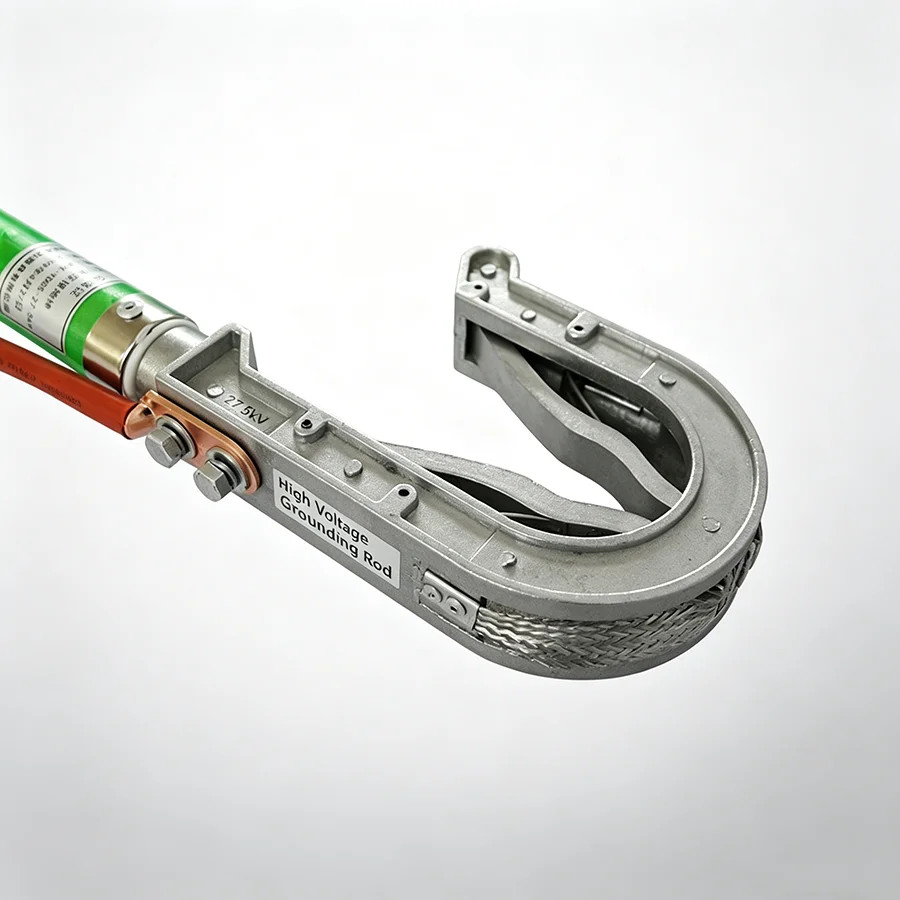

Gooseneck grounding hook: clamps directly onto the contact wire. The galvanised rail clamp in corrosion-resistant carbon steel anchors the other end to the rail.

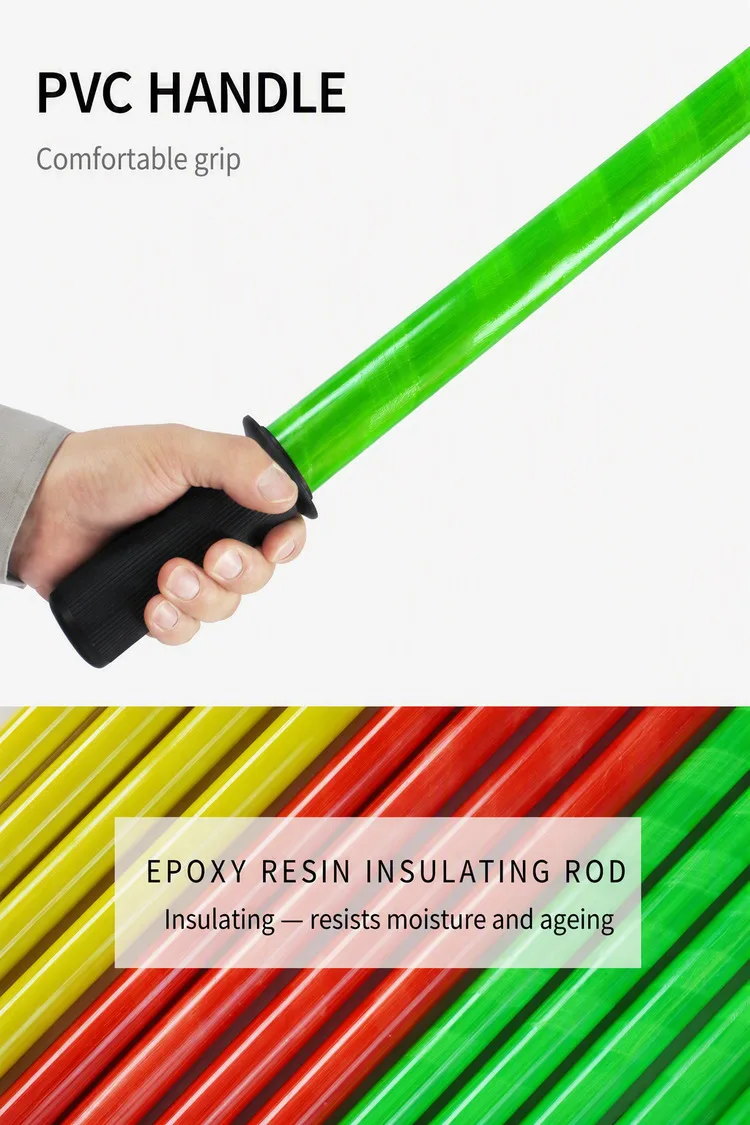

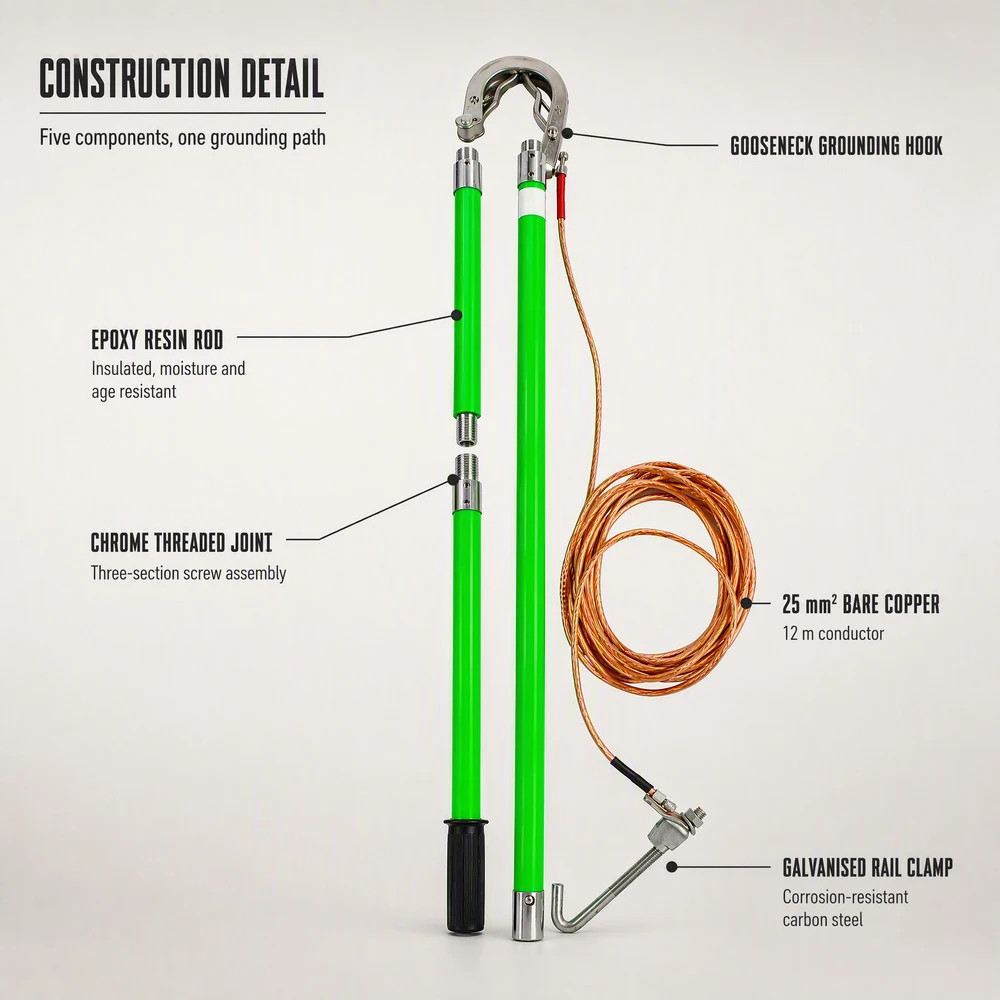

Five components, one grounding path: gooseneck hook, epoxy resin rod, chrome threaded joints, copper conductor and rail clamp. PVC handle grips, red / yellow / green colour coding. Conforms to IEC 61230.
