110 kV Earth Rod & 3-Phase Short-Circuit Ground Wire Set
Complete 3-phase short-circuit grounding set with insulating operating rod for 110 kV maintenance.
MOQ
1 set
Supply Type
OEM / ODM / Buyer Label
Final quotation depends on specification, quantity and destination — request a quote for exact pricing.
- Standard
- IEC 61230
- Voltage Class
- 110 kV
- Type
- 3-phase short-circuit grounding set
- Conductor
- Oxygen-free copper, 35/50/70 mm²
- Insulating Rod
- Epoxy resin, sectional design
- Included
- Earth rod, ground wires, insulating operating rod
Product Attributes
| Standard | IEC 61230 |
| Voltage Class | 110 kV |
| Type | 3-phase short-circuit grounding set |
| Conductor | Oxygen-free copper, 35/50/70 mm² |
| Insulating Rod | Epoxy resin, sectional design |
| Included | Earth rod, ground wires, insulating operating rod |
| Packing | Canvas bag |
| Usage | Lightning protection earthing, substation, transmission tower |
| Model Number | YJH-GW |
| Brand Name | YJH POWER |
| Place of Origin | Hebei, China |
Description
IEC 61230 110 kV high-voltage grounding wire set with 3-phase short-circuit grounding device and insulating operating rod, ensuring absolute grounding safety during power transmission maintenance.
Oxygen-free copper conductor: 70 mm² oxygen-free soft copper earth wire delivers excellent current capacity, low resistance and oxidation resistance for reliable short-circuit surge protection.

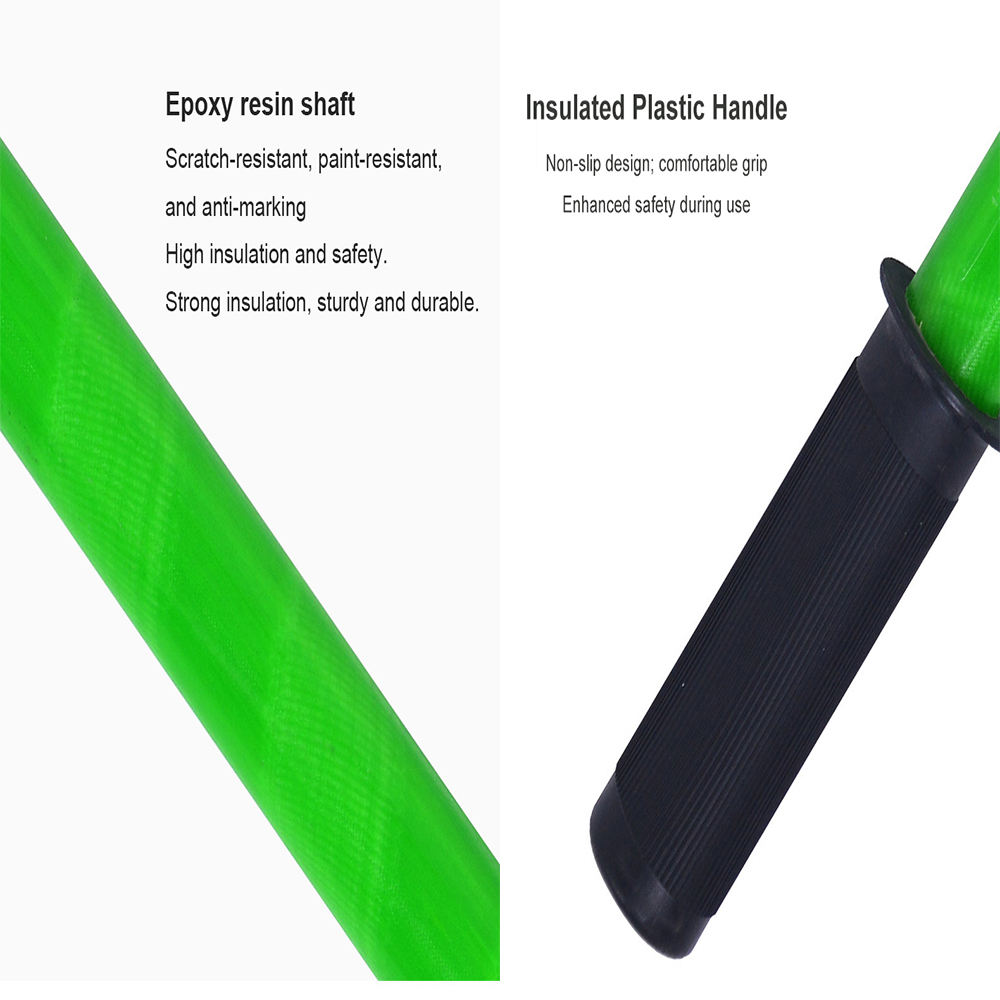

Reinforced insulating operating rod: lightweight, high-strength epoxy resin rod with sectional design, excellent weather resistance and easy field assembly for portable grounding operations.

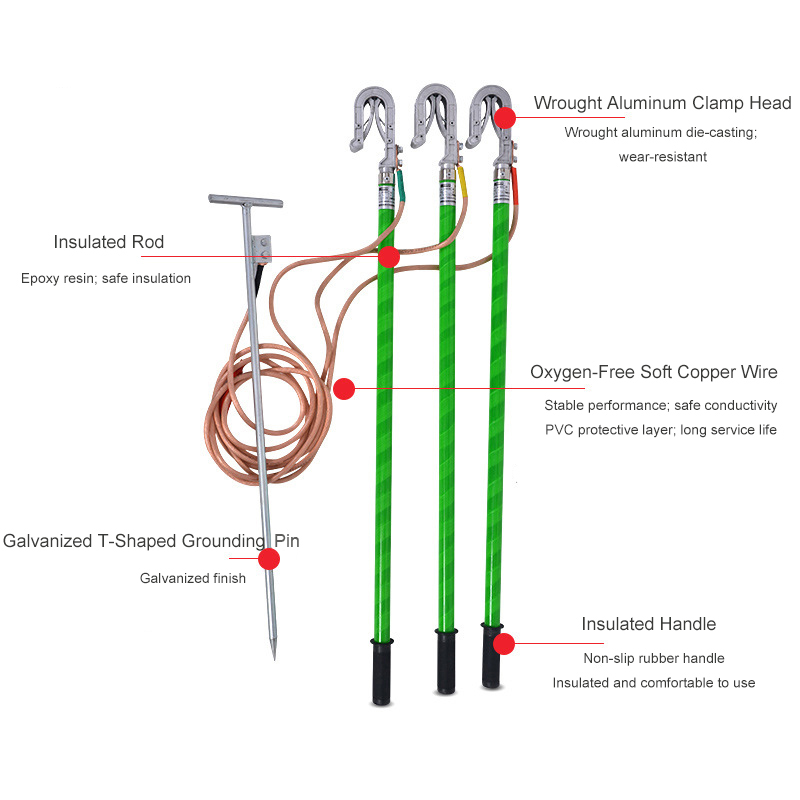

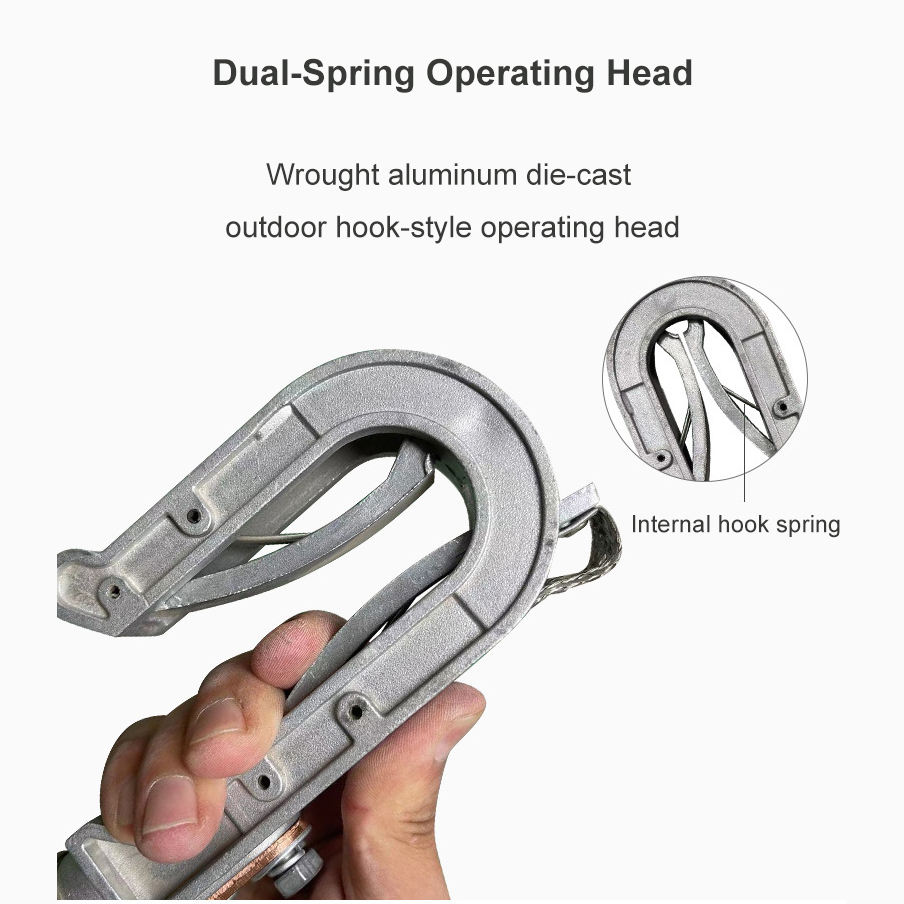

Versatile grounding clamps and earth rod: heavy-duty clamps and a rigid earth rod handle everything from substations to transmission towers, meeting lightning-protection earthing requirements.

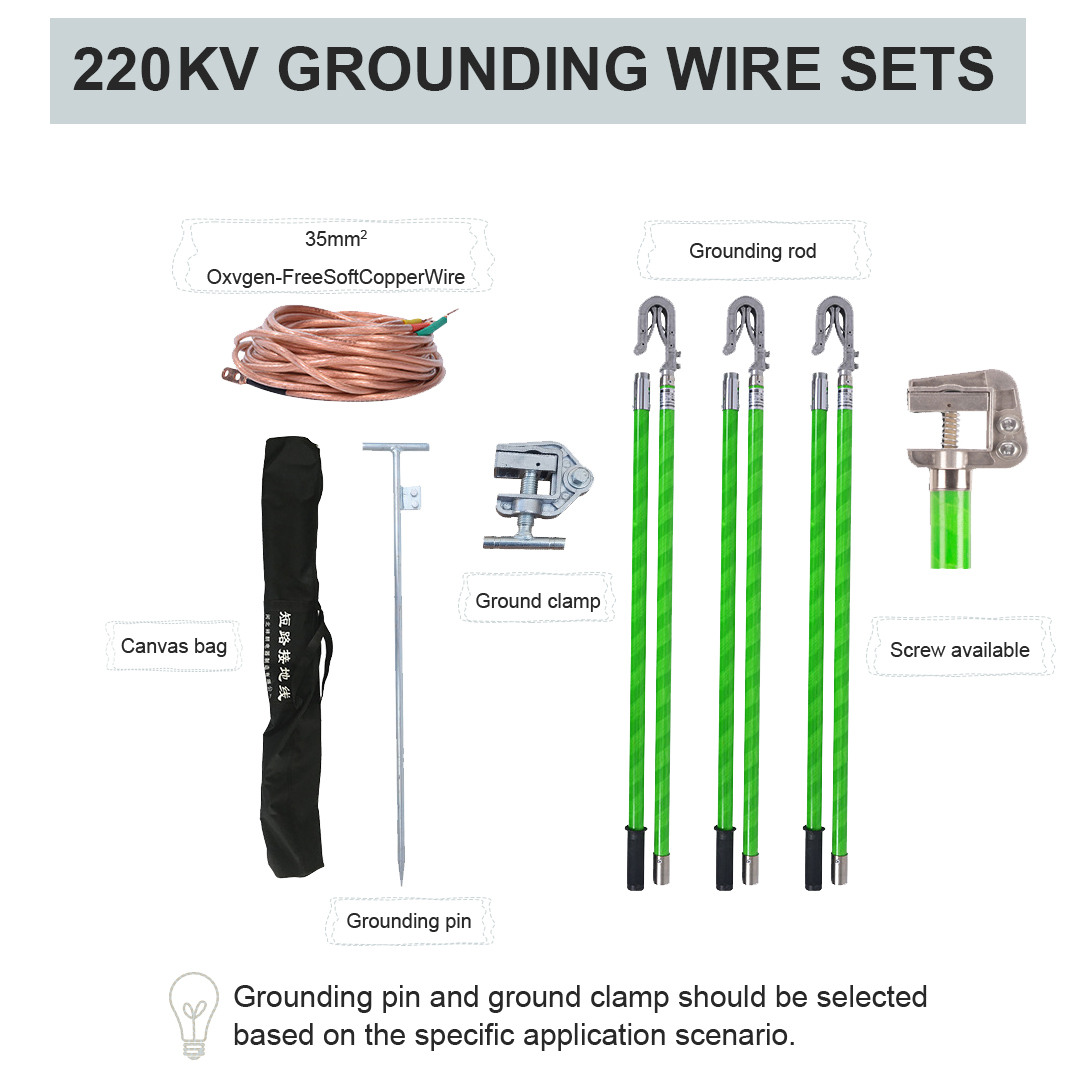

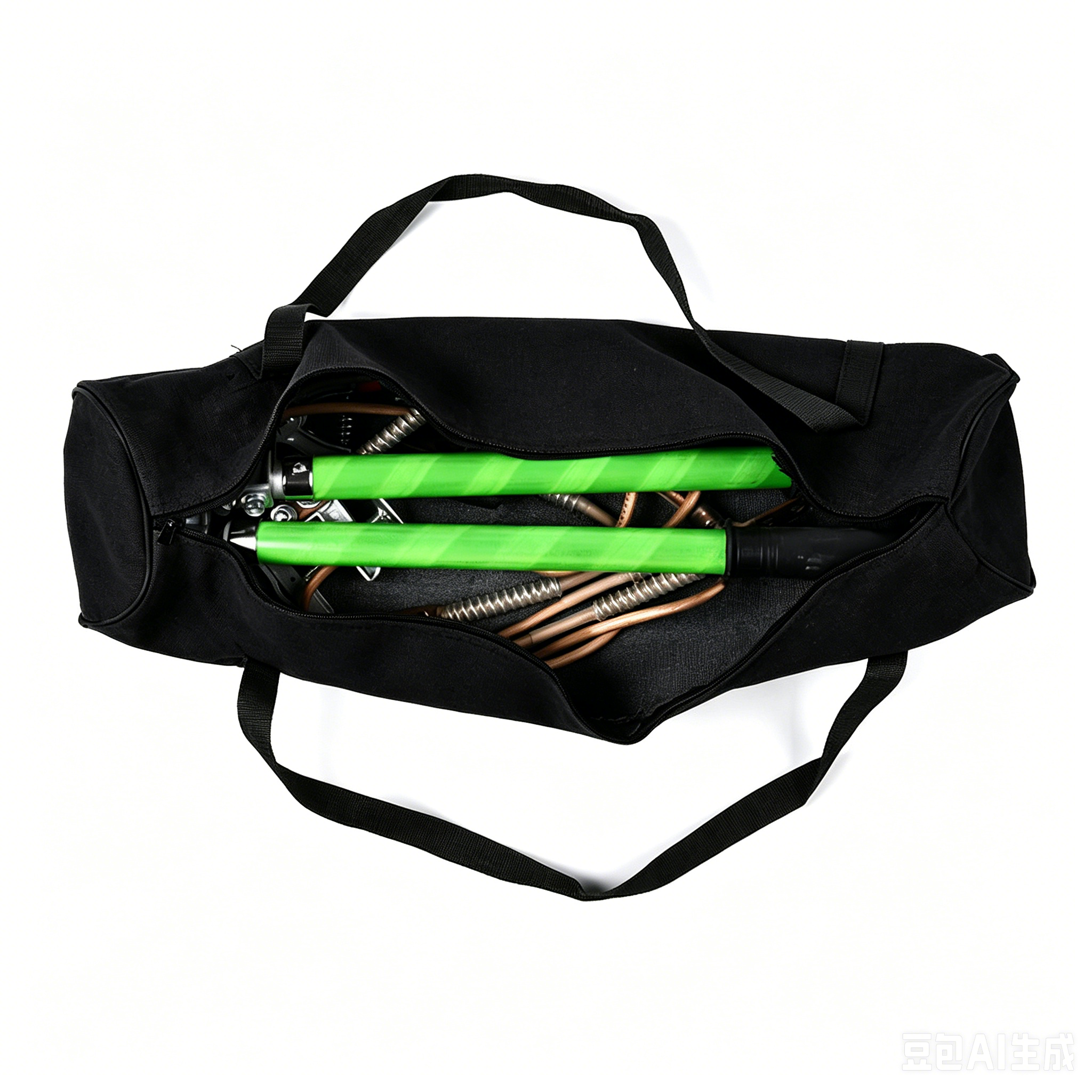

Complete portable kit with canvas bag: abrasion-resistant canvas bag for single-person portability; corrosion-resistant coating and industrial-grade components ensure long-term outdoor durability.
Related Products
View all Grounding, Earthing & Lightning Protection
Technical guides
Still deciding? Read the engineering guide
Background on how this product's class, dimensions and test requirements are determined.
FAQ
Frequently asked questions
Answers below are taken directly from this product's recorded specification, packaging and delivery data.
- Which standards and certifications does this product comply with?
- 110 kV Earth Rod & 3-Phase Short-Circuit Ground Wire Set is supplied under IEC 61230 and ISO 9001.
- What is the minimum order quantity (MOQ)?
- The minimum order quantity for this product is 1 set.
- What is the lead time?
- Lead time: 7-30 days, depending on order quantity.
- Which port is the product shipped from?
- Shipments are loaded at Tianjin.
- What is the monthly supply ability?
- Supply ability: 85,000 sets/month.
- What are the main technical specifications?
- Type: 3-phase short-circuit grounding set; Voltage Class: 110 kV.
- How is the product packed for shipment?
- Sales unit: single item; Package size: 100 x 50 x 50 cm; Gross weight: 20.0 kg
