Insulated Hook Rod for Railway Catenary Object Removal

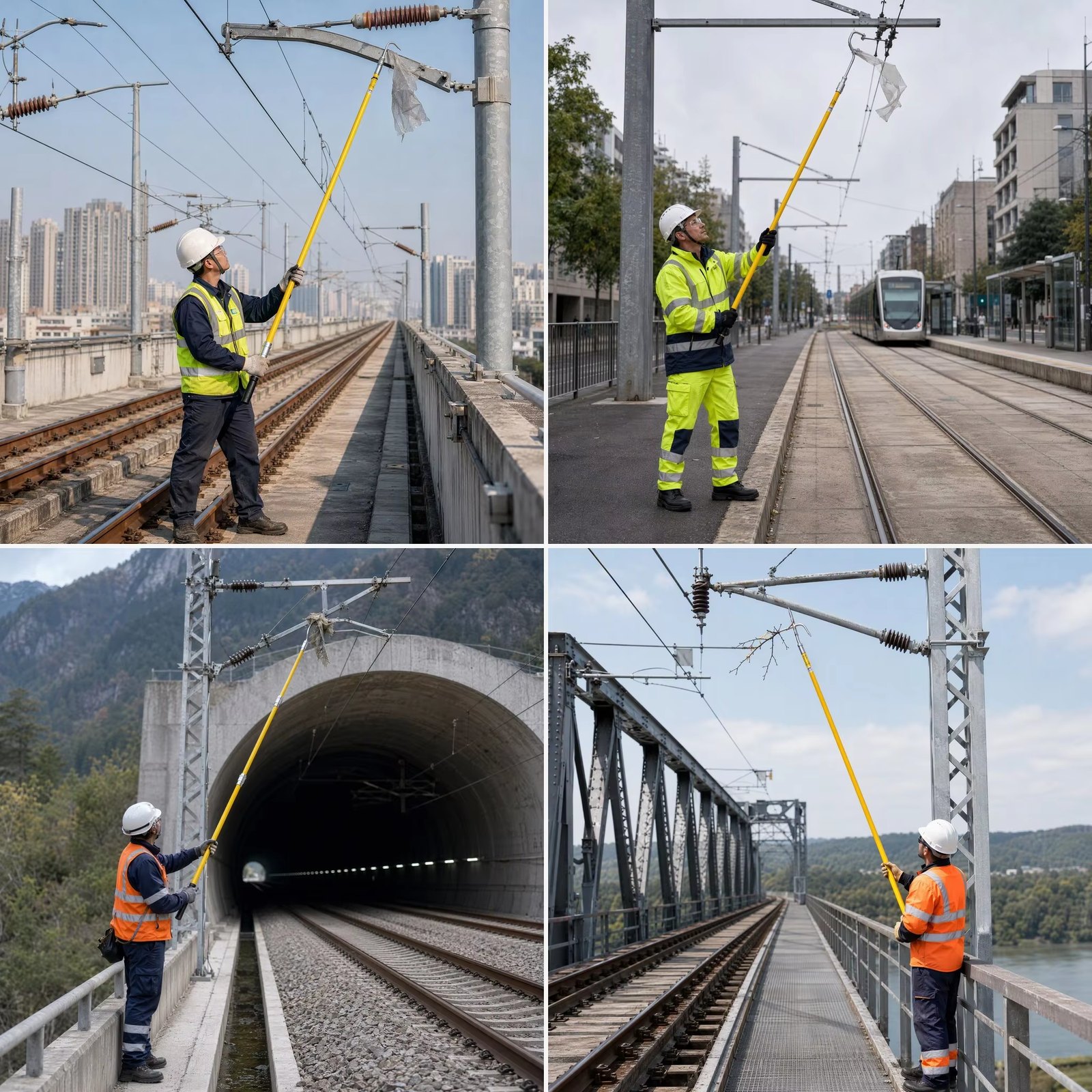

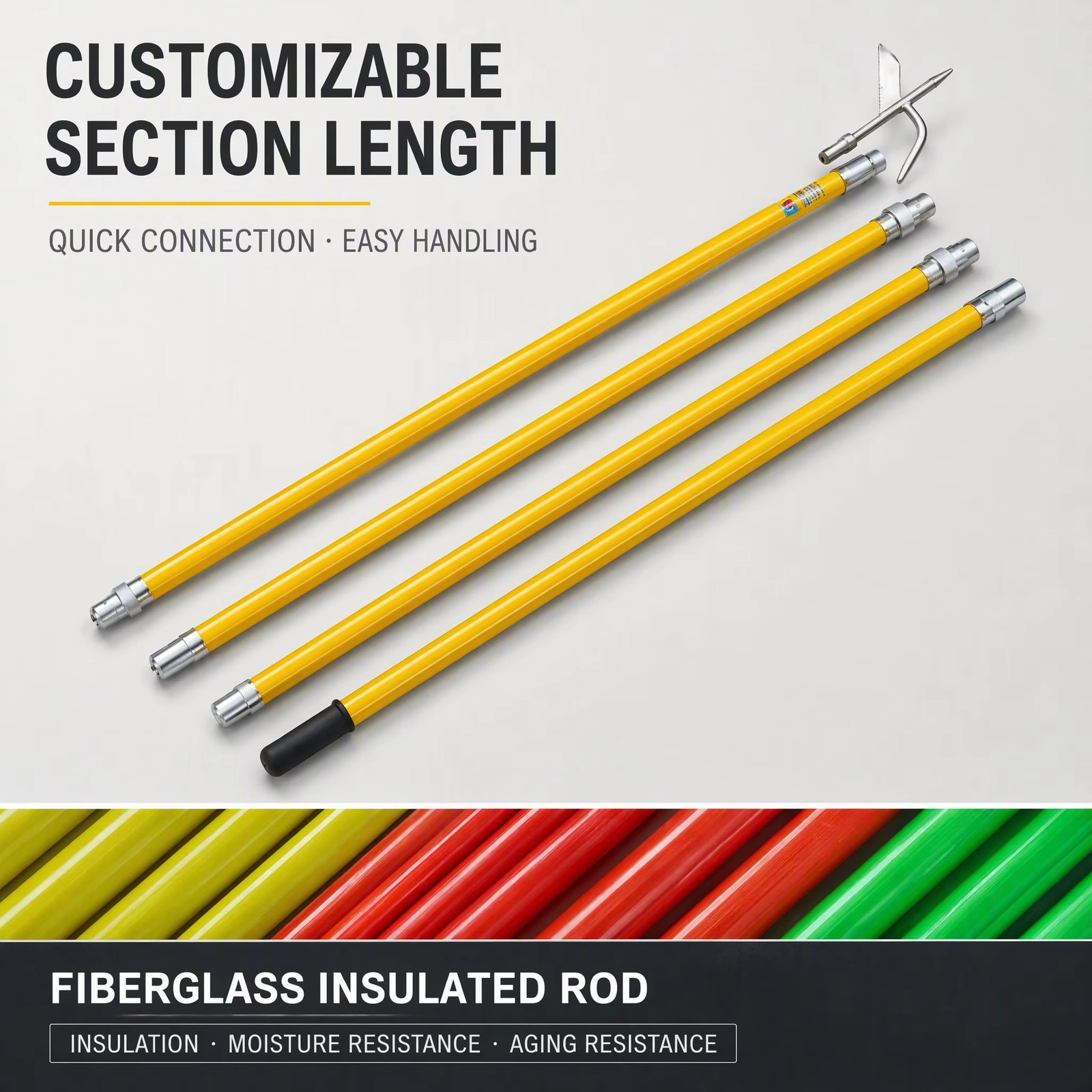

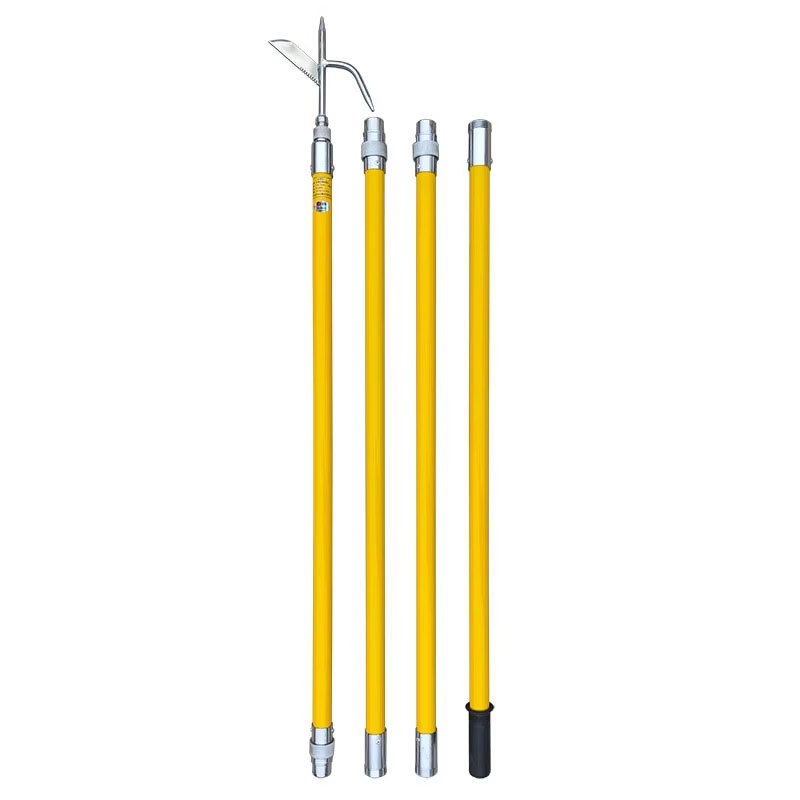

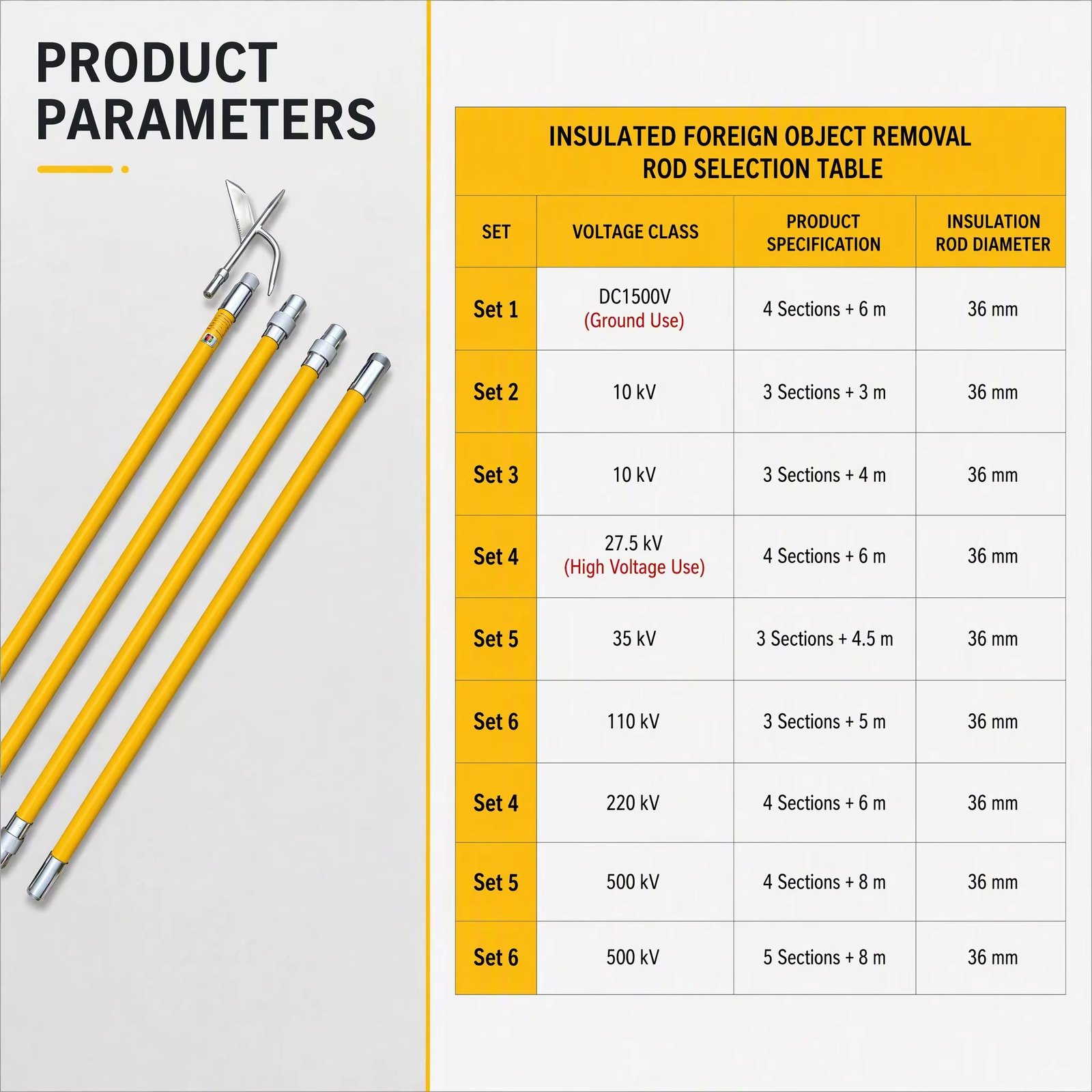

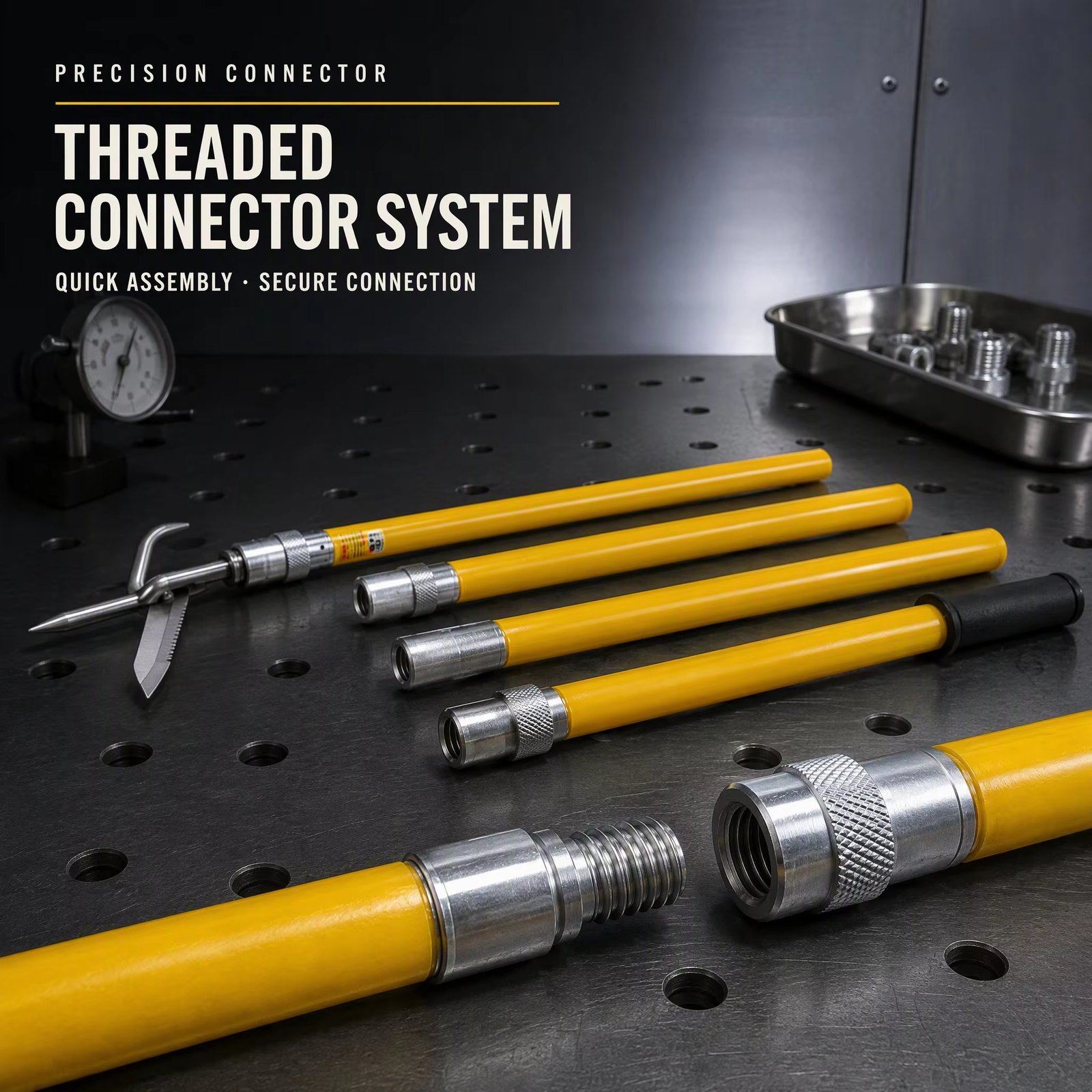

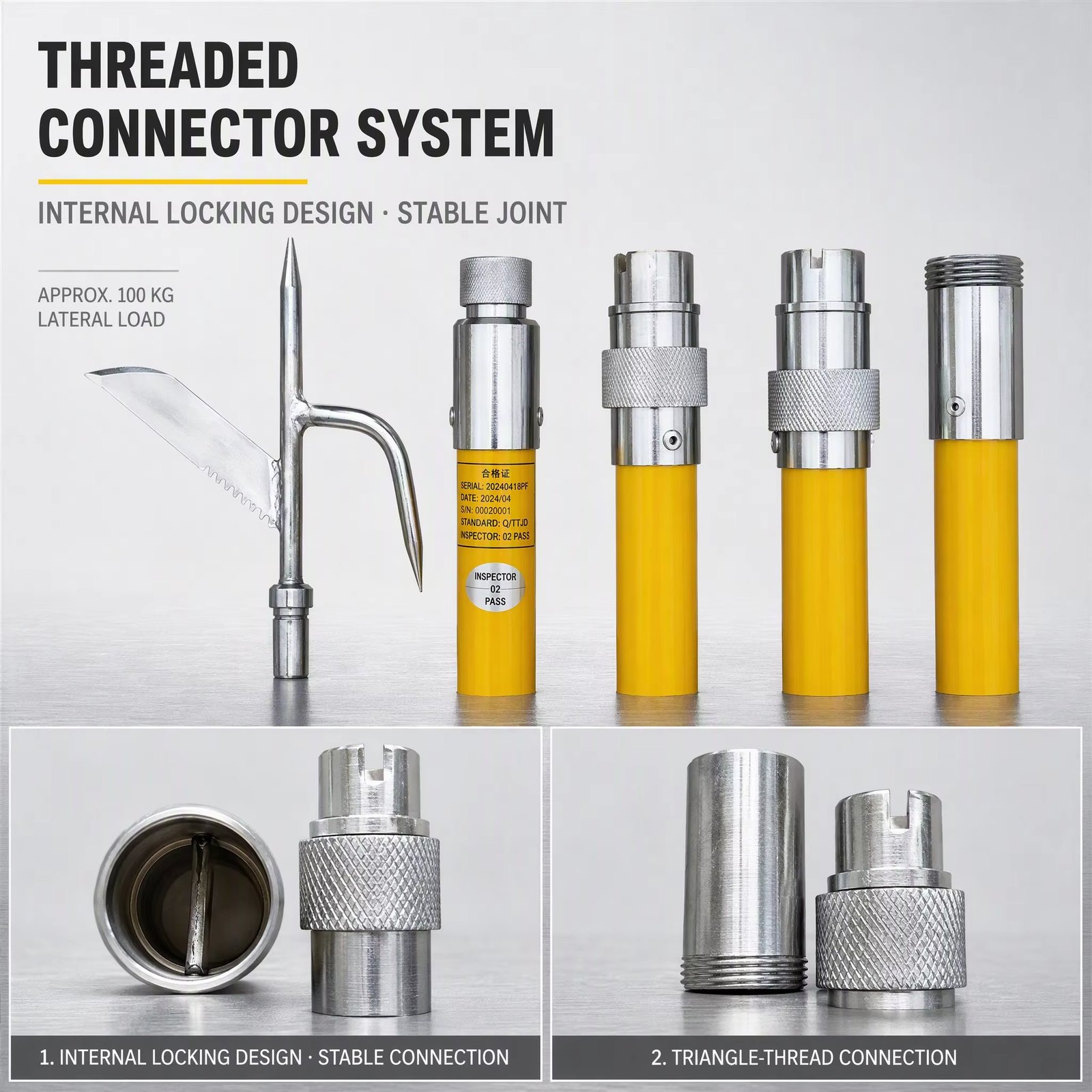

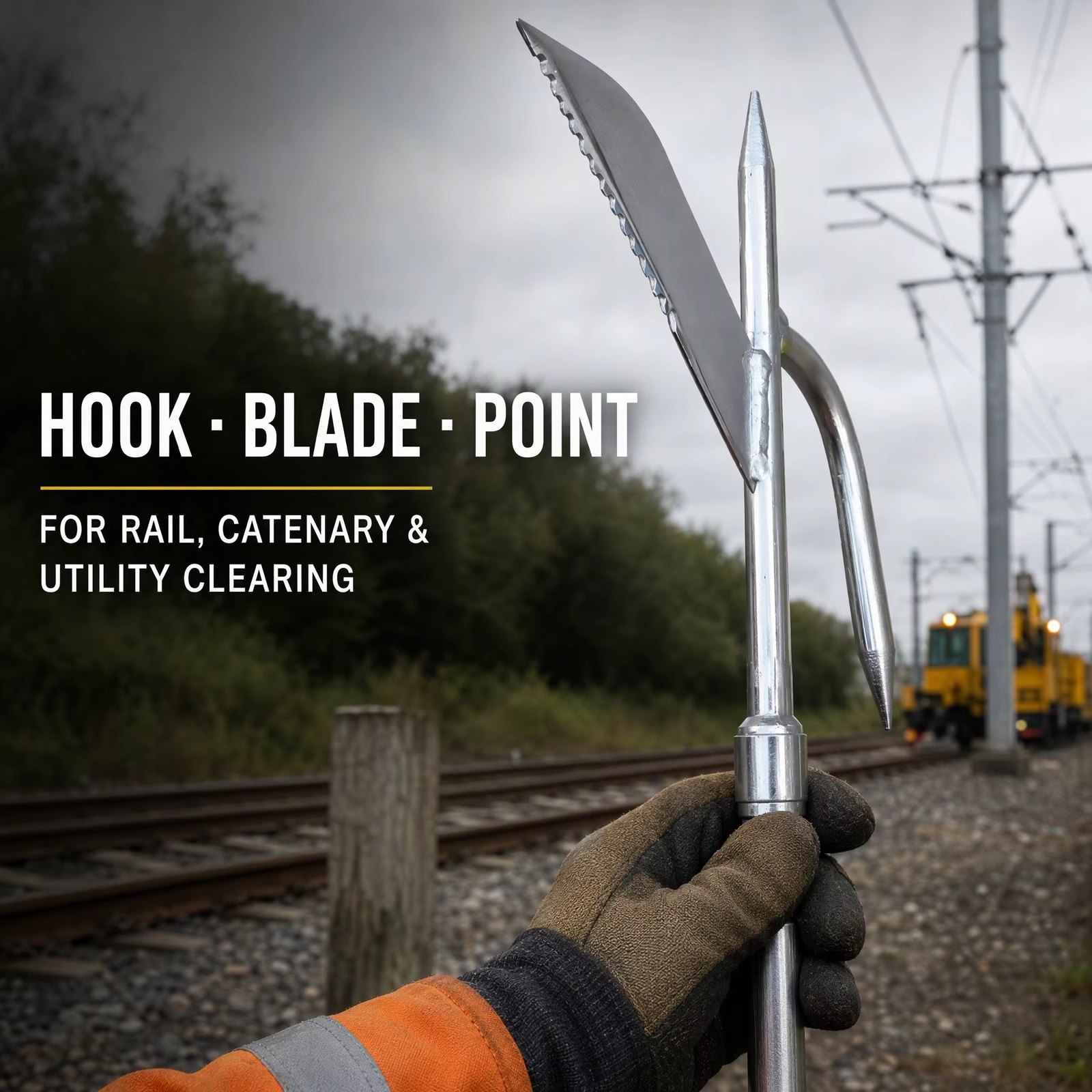

This rod exists to take things off a live overhead line without sending anyone up to it. Plastic bags, kites and branches are pulled clear from the ground with a hook, cut with a blade or pushed away with a spade, and the heads swap on the same pole. The pole is FRP fibreglass with metal threaded connectors between sections, so the working length is built up on site and the whole rod packs down for transport. Waterproof and UV-resistant, it is meant to stay outdoors for long periods without cracking or deforming. Eight sizes are made, covering 10 kV at 3 m and 4 m in three sections, 35 kV at 4.5 m, 110 kV and 220 kV at 6 m in four sections, and 500 kV at 8 m in five sections. Two railway-specific versions are built to the same pattern: DC 1500 V for metro, and 27.5 kV for high-speed rail, both 6 m in four sections. MOQ is 2 pieces, packed at 200 × 30 × 20 cm and 7 kg. Working head type is chosen per order.
