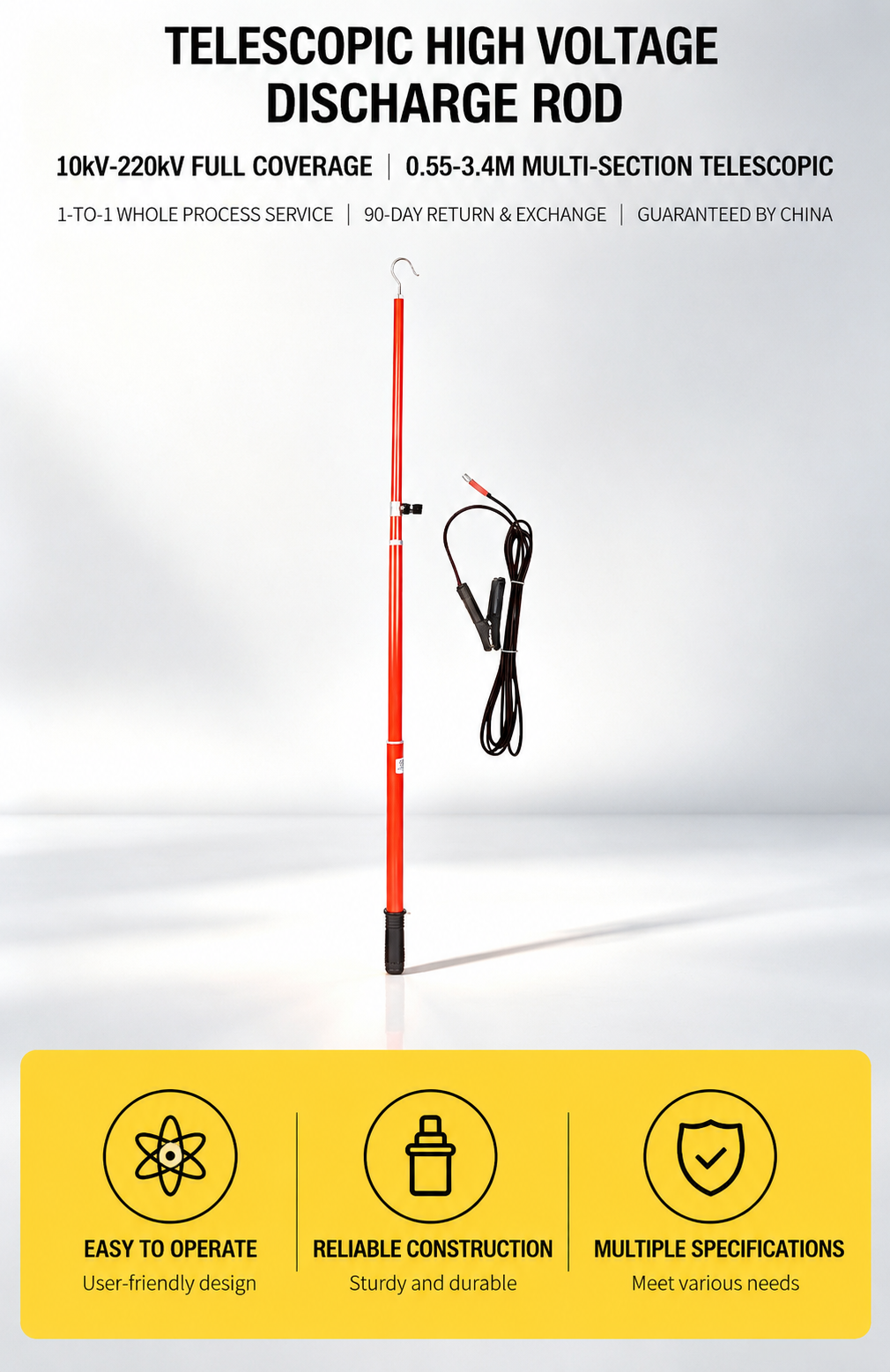

Telescopic High Voltage Discharge Rod 10 kV – 220 kV
Telescopic high-voltage discharge rod for earthing and residual-charge discharge on de-energised circuits. Epoxy fiberglass pole, resistive discharge element and copper earth cable, supplied in 10 kV, 35 kV, 50 kV, 110 kV and 220 kV versions.
MOQ
1 piece
Supply Type
OEM / ODM / Buyer Label
Final quotation depends on specification, quantity and destination — request a quote for exact pricing.
- Product Name
- High Voltage discharge rod
- Type
- Telescopic discharge rod
- Voltage
- 10 kV, 35 kV, 50 kV, 110 kV, 220 kV
- Rod Material
- Epoxy fiberglass
- Discharge Type
- Resistive
- Rod Structure
- Telescopic
Product Attributes
| Product Name | High Voltage discharge rod |
| Type | Telescopic discharge rod |
| Voltage | 10 kV, 35 kV, 50 kV, 110 kV, 220 kV |
| Rod Material | Epoxy fiberglass |
| Discharge Type | Resistive |
| Rod Structure | Telescopic |
| Earth Wire | Copper cable |
| Colour | Red / customised |
| OEM | Accepted |
| Application | Electrical power transmission, power station |
| Model Number | Dual-purpose discharge rod (AC/DC) |
| Brand Name | YJH |
| Place of Origin | Hebei, China |
Description
A discharge rod is used to remove residual capacitive charge from a circuit that has been isolated but not yet earthed — the step between switching off and applying portable earths.
This is a telescopic rod: it collapses to a transportable length and extends to the working length for the system voltage, so one rod covers a range of sites rather than a single voltage class. The pole is epoxy fiberglass; the earth connection is a copper cable with a clamp, and the discharge element is available in resistive and non-resistive versions.

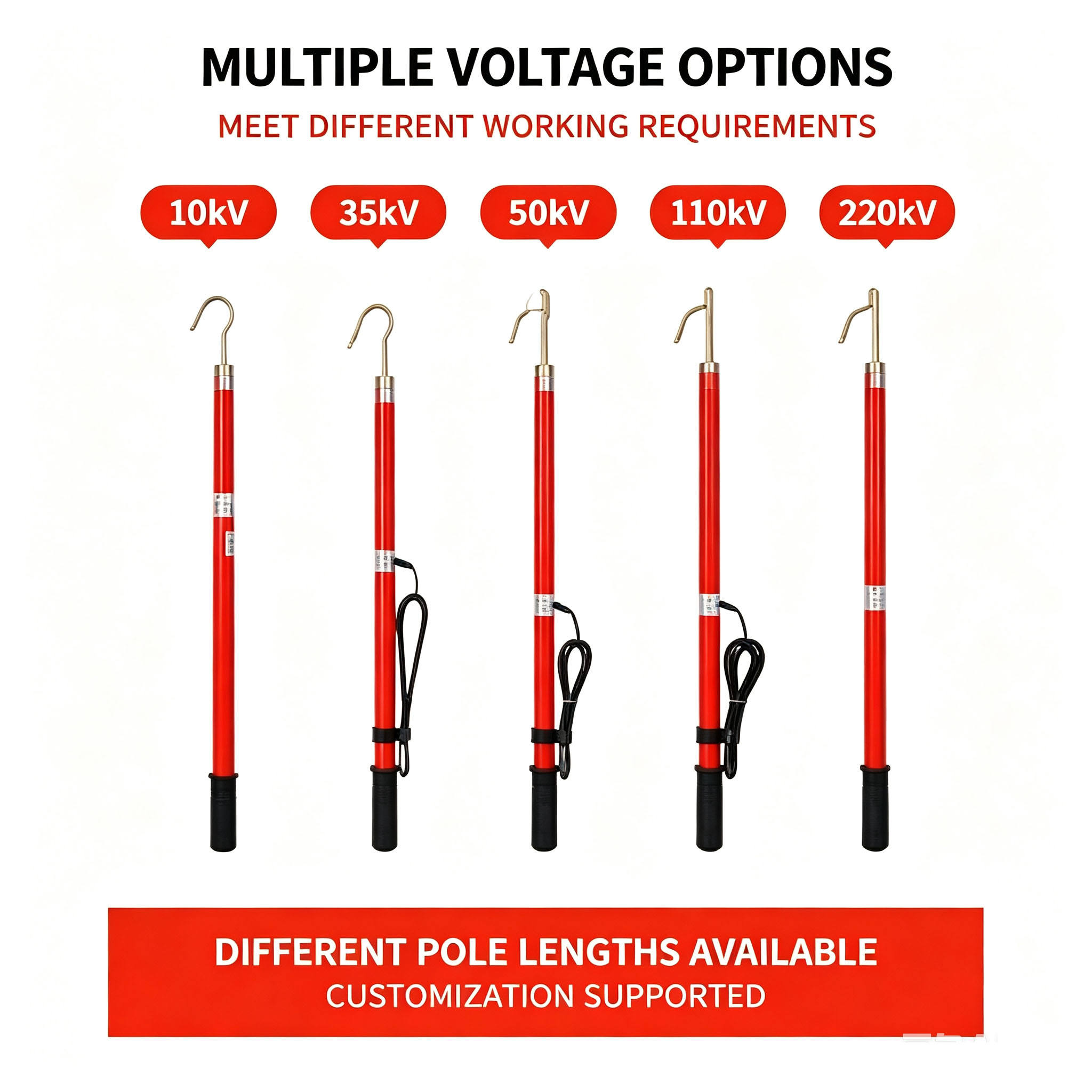

Versions are supplied for 10 kV, 35 kV, 50 kV, 110 kV and 220 kV, with rod lengths from 1.1 m to 3 m. Colour and OEM branding are customisable.
Every rod is supplied with its earth cable and is packed as a single item measuring 110 x 15 x 15 cm at 1.5 kg.
Related Products
View all Grounding, Earthing & Lightning Protection
Technical guides
Still deciding? Read the engineering guide
Background on how this product's class, dimensions and test requirements are determined.
FAQ
Frequently asked questions
Answers below are taken directly from this product's recorded specification, packaging and delivery data.
- Which standards and certifications does this product comply with?
- Telescopic High Voltage Discharge Rod 10 kV – 220 kV is supplied under ISO 9001.
- What is the minimum order quantity (MOQ)?
- The minimum order quantity for this product is 1 piece.
- What is the lead time?
- Lead time: 7-30 days, depending on order quantity.
- Which port is the product shipped from?
- Shipments are loaded at Tianjin.
- What are the main technical specifications?
- Rod Material: Epoxy fiberglass; Voltage Range: 10 kV / 35 kV / 50 kV / 110 kV / 220 kV; Colour: Red (customisable).
- How is the product packed for shipment?
- Sales unit: single item; Package size: 110 x 15 x 15 cm; Gross weight: 1.5 kg
- Can this product be customized?
- OEM: Accepted
Production & Quality
How this discharge rod is produced and checked

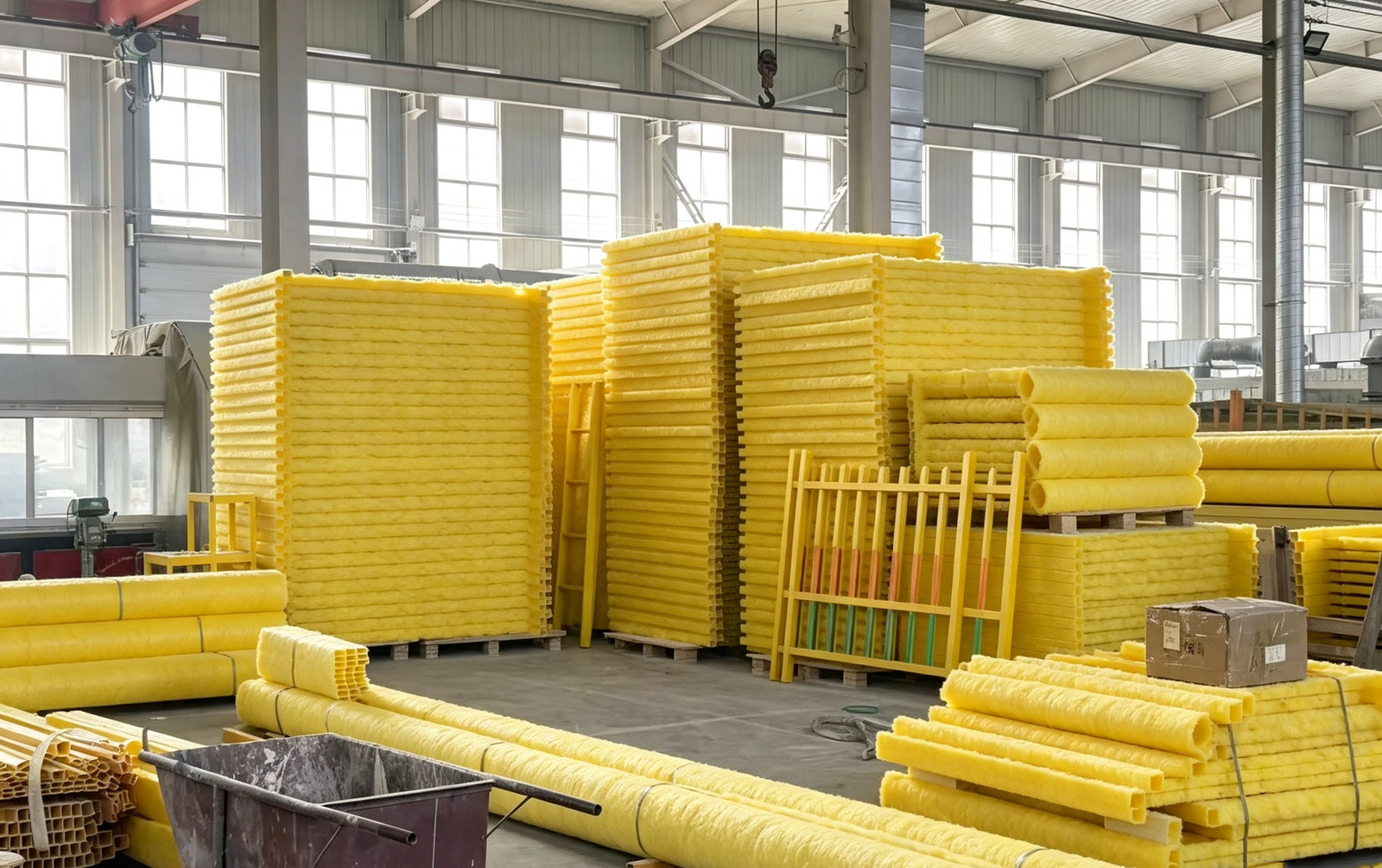

Every rod is built on one site: the epoxy fiberglass pole is pultruded on our own line, the telescopic sections are matched by hand, and the assembled rod is insulation tested before it is packed as a single item.
Process — how it is made
- Pole body pultruded on our own line: reinforcement is pulled through a resin bath and a heated die, which sets wall thickness and resin content before the tube is cured.
- Telescopic sections cut to length and squared, then matched so the rod extends to the working length of its voltage class — 1.1 m at 10 kV up to 3 m at 220 kV.
- Resistive discharge element fitted as its own assembly, and the copper earth cable prepared with its clamp at the same station.
- Joints and locking checked section by section, so the rod holds its set length in service instead of creeping back down.
- Color and OEM branding applied last, so a customized run leaves the line finished to the buyer label.
Inspection — how it is checked
- Incoming material check: resin, reinforcement and bought-in metal parts are checked against the specification before they are released to the line.
- Dimensional check on every section — length, tube diameter and squareness of the cut ends.
- In-process checks at the cutting, assembly and earth-cable stations, recorded against the production order.
- Insulation withstand testing before shipment, with third-party testing supported on request.
- Surface check on the finished pole, then a final packing check against the packing list.
Capacity and delivery for this line
- This product: minimum order 1 piece, with a lead time of 7–30 days depending on order quantity, loaded at Tianjin.

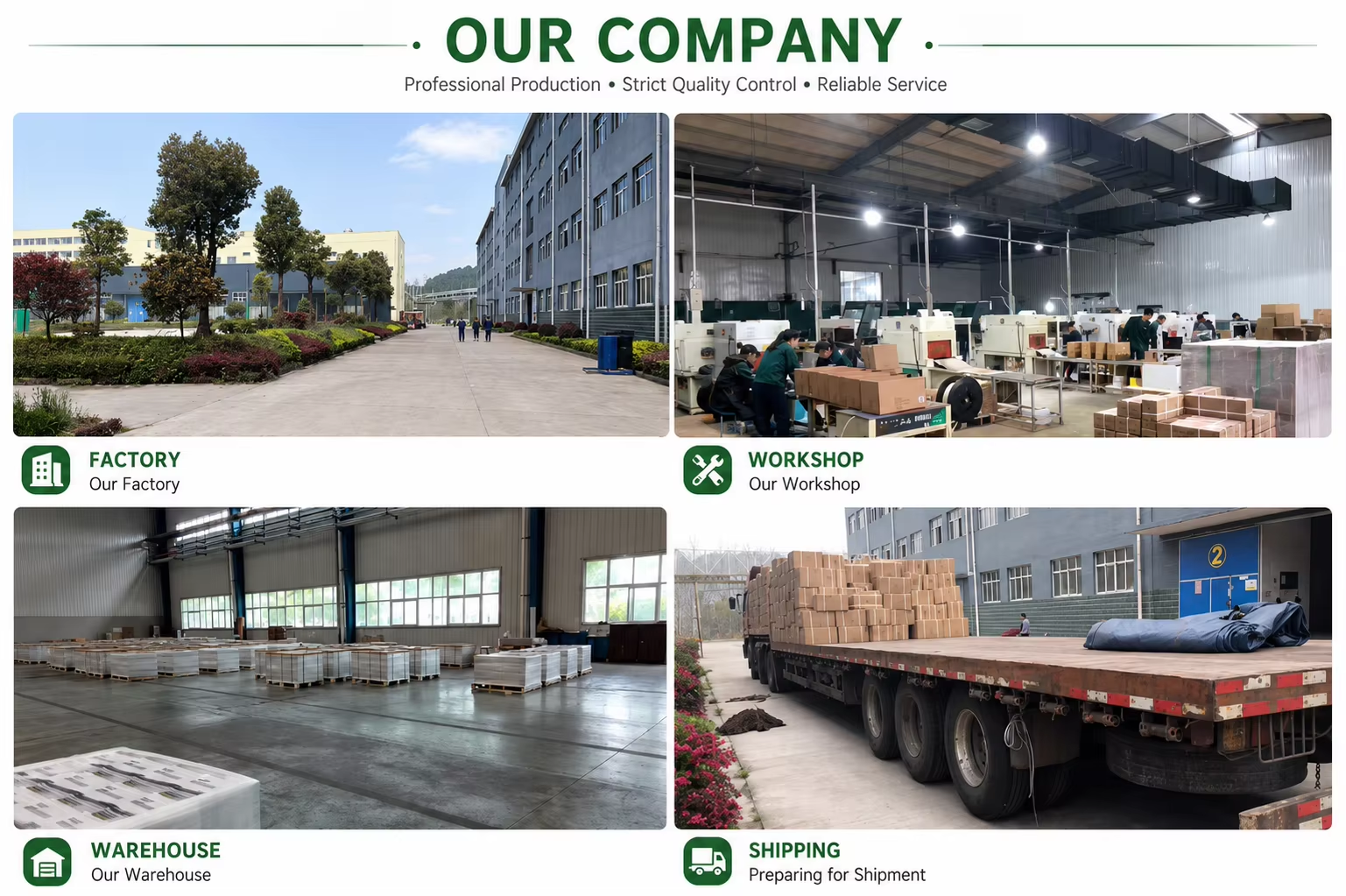

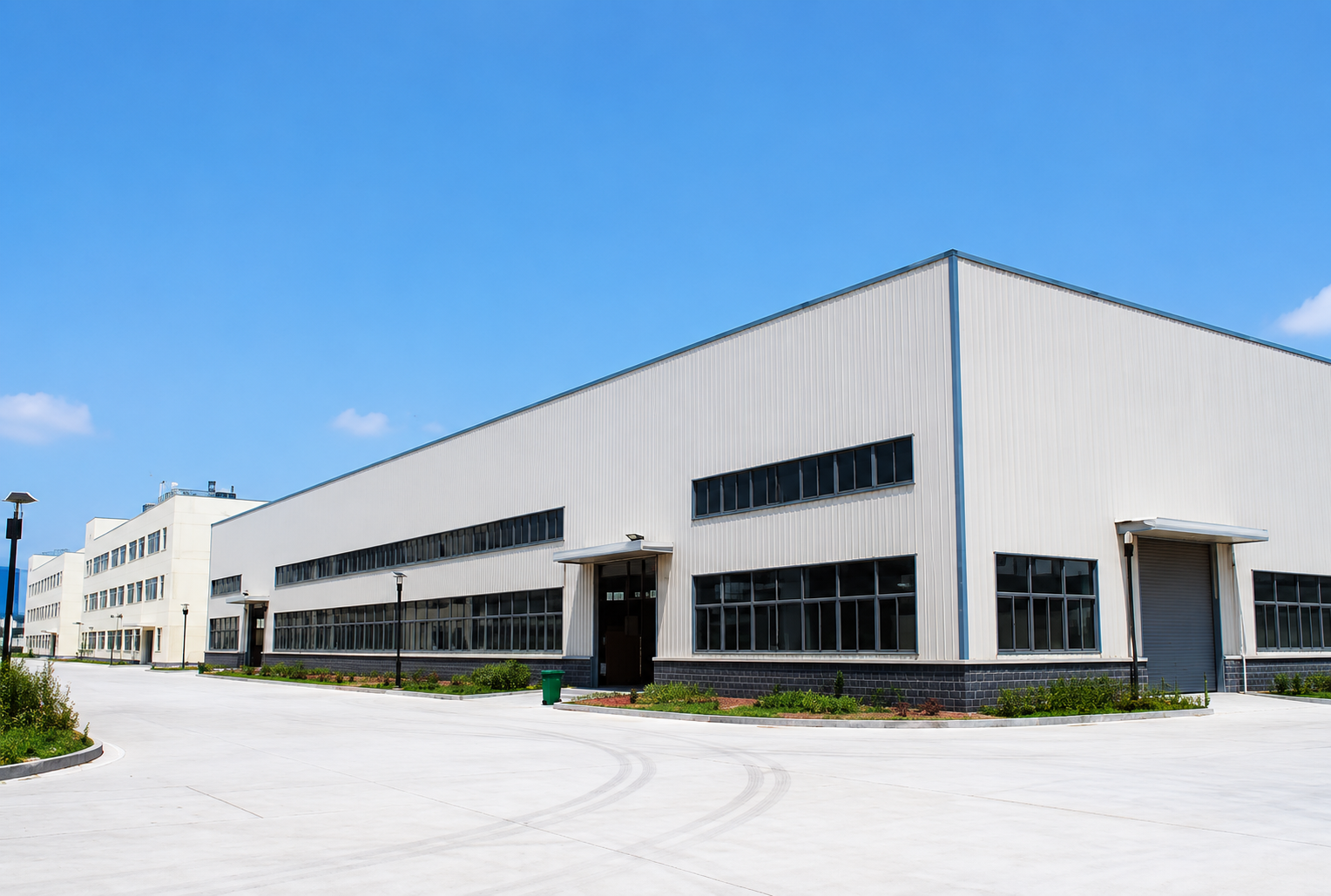

- Company: 525 employees, 7 dedicated production lines and 80,000 m² of manufacturing buildings inside a 1,200,000 m² industrial park in Shijiazhuang, Hebei.
- Manufacturing electrical safety equipment since 1996, with 5000+ projects delivered to 60+ countries.
- Industrial park (site area)
- 1,200,000 m²
- Manufacturing buildings (floor area)
- 80,000 m²
- Dedicated production lines
- 7
- Employees
- 525
- Countries served
- 60+
- Projects delivered
- 5000+
